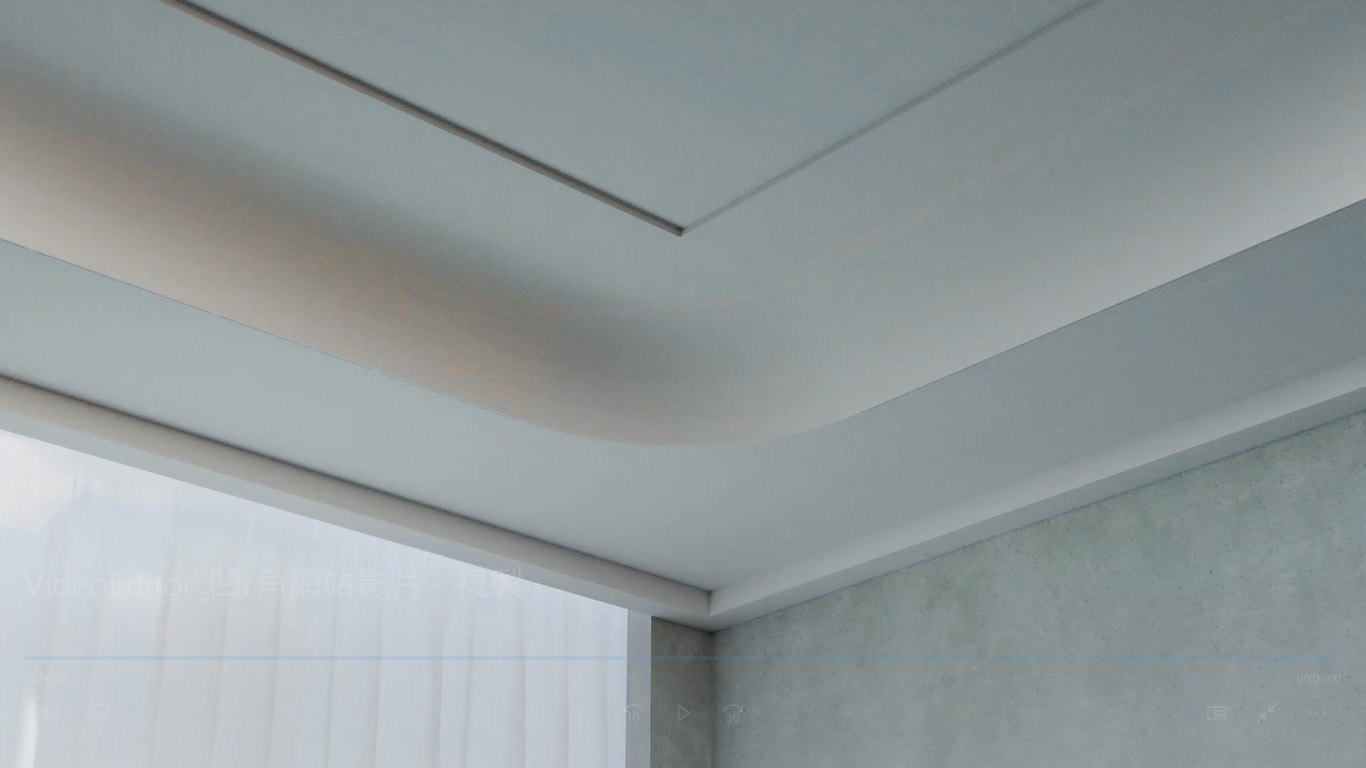

造型天花板弧形骨架 - 內凹角

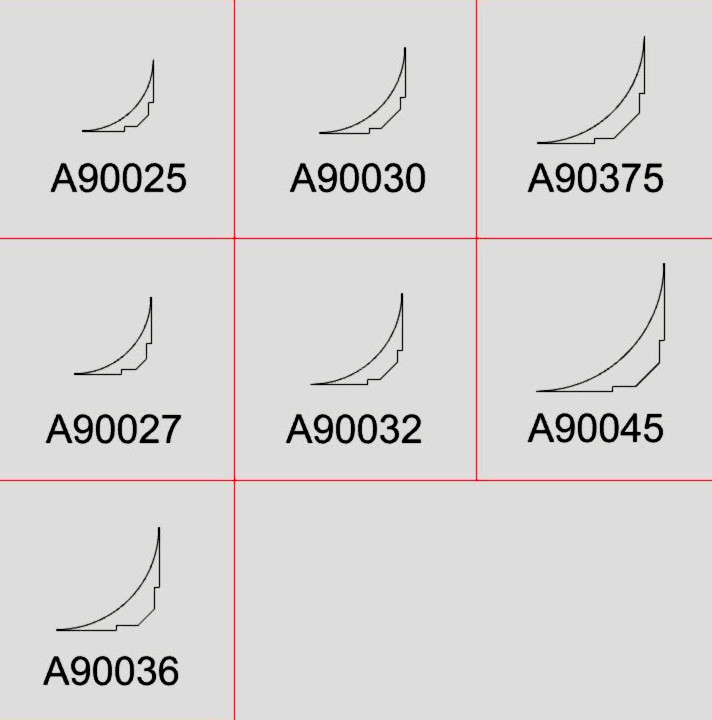

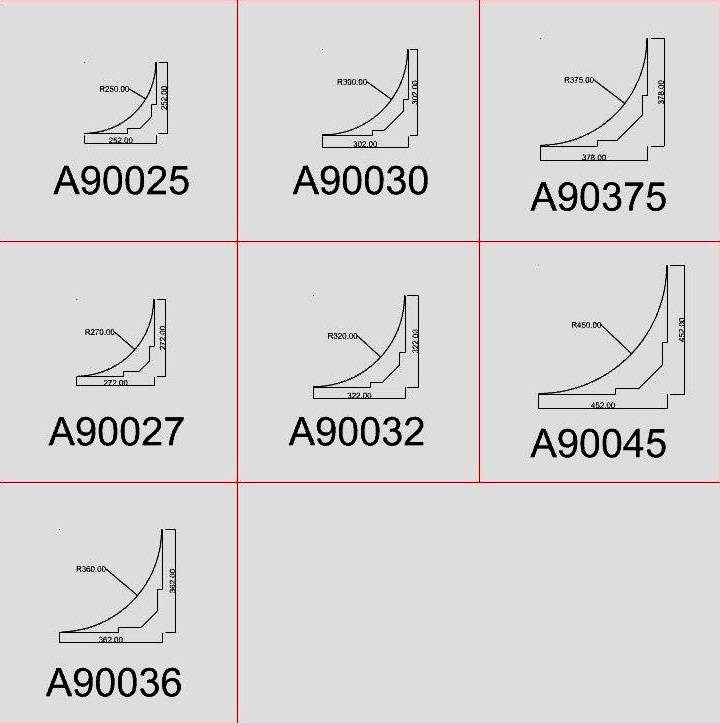

內凹骨料規格
A25 (R=250 L=252)
A27 (R=270 L=272)
A30 (R=300 L=302)
A32 (R=320 L=322)
A36 (R=360 L=362)
A37.5 (R=375 L=377)
A45 (R=450 L=452)
內凹直條規格

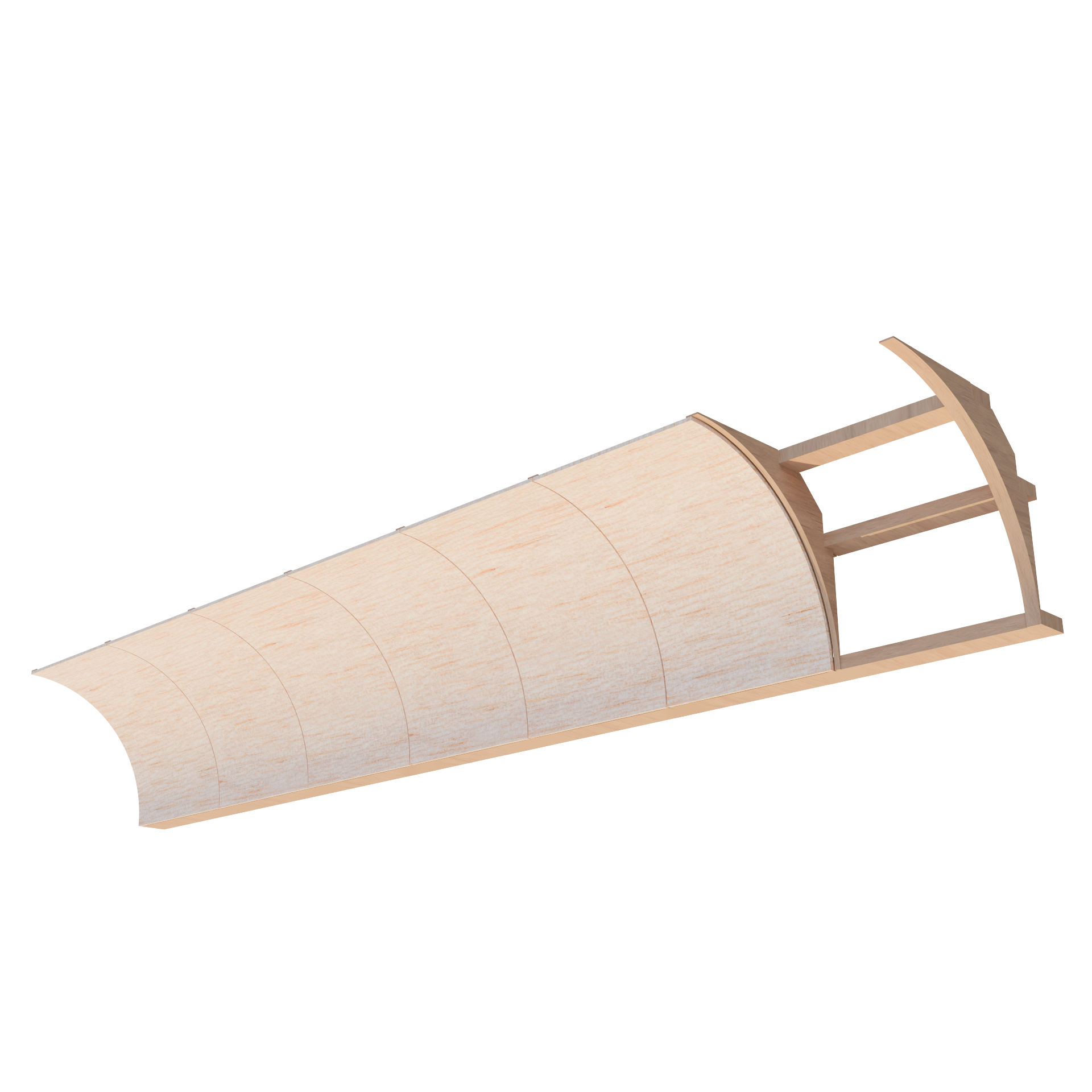

S-A25 (R=245 W=300 H=252)
S-A27 (R=265 W=320 H=272)

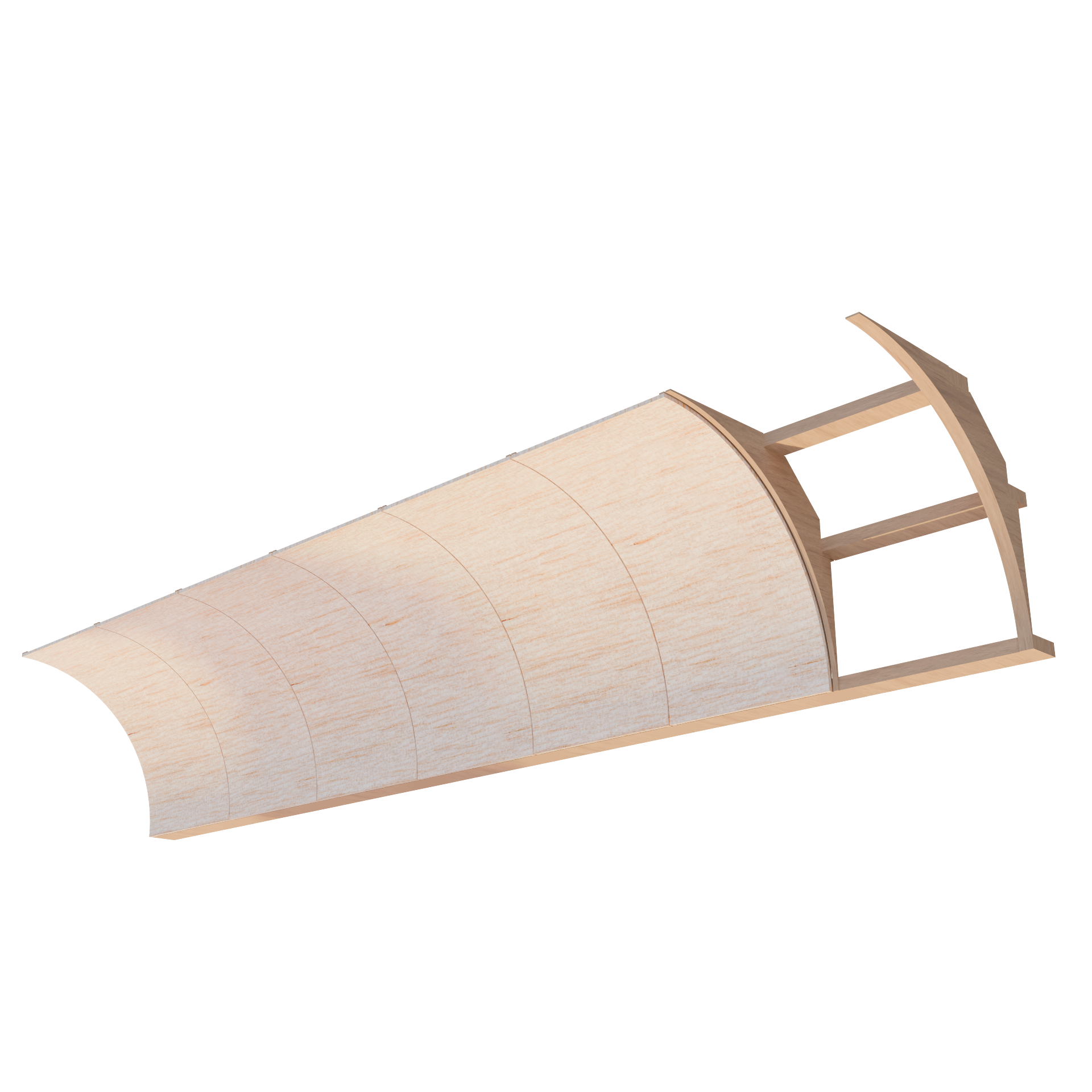

S-A30 (R=295 W-350 H=302)

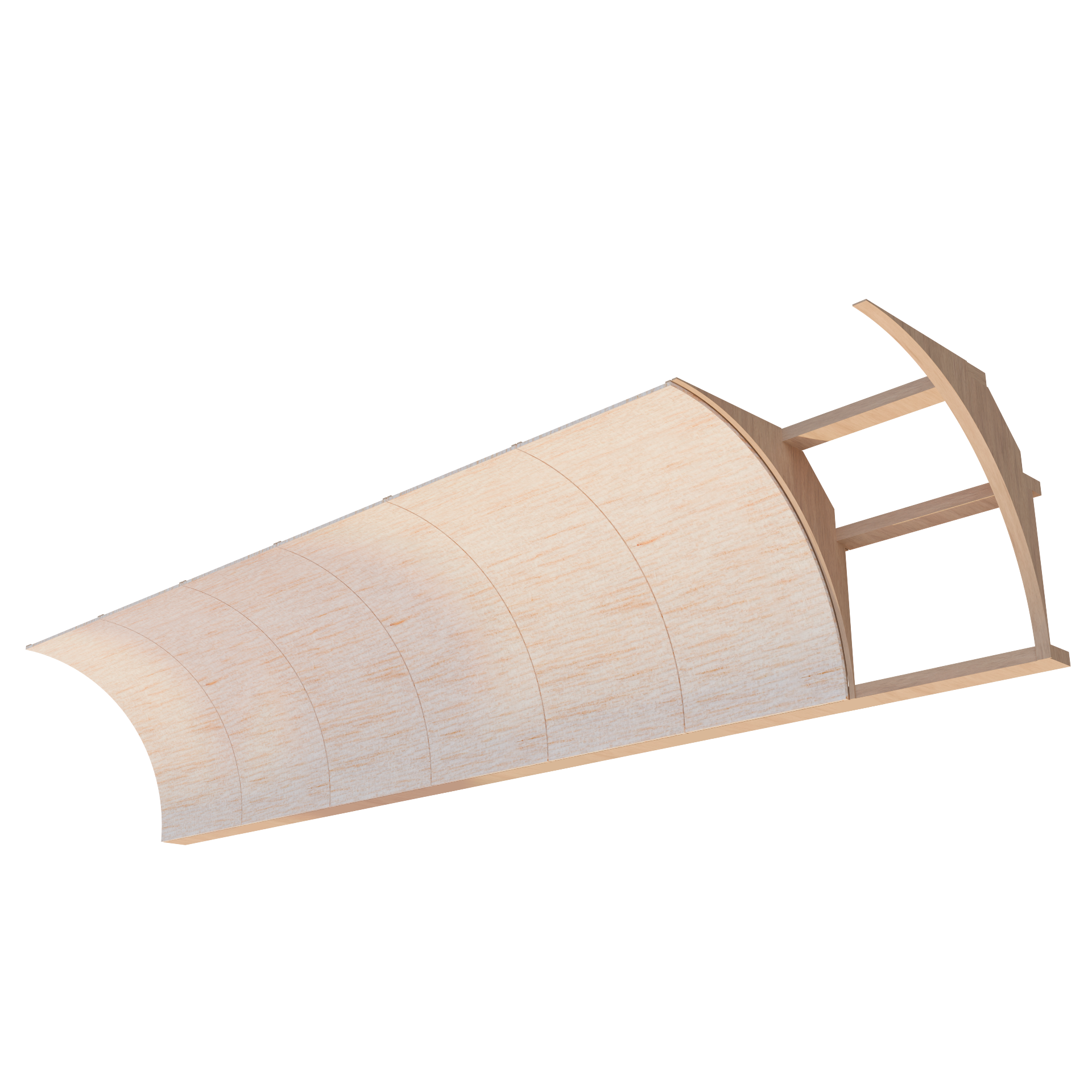

S-A32 (R=315 W=370 H=322)
S-A36 (R=355 W=410 H=392)

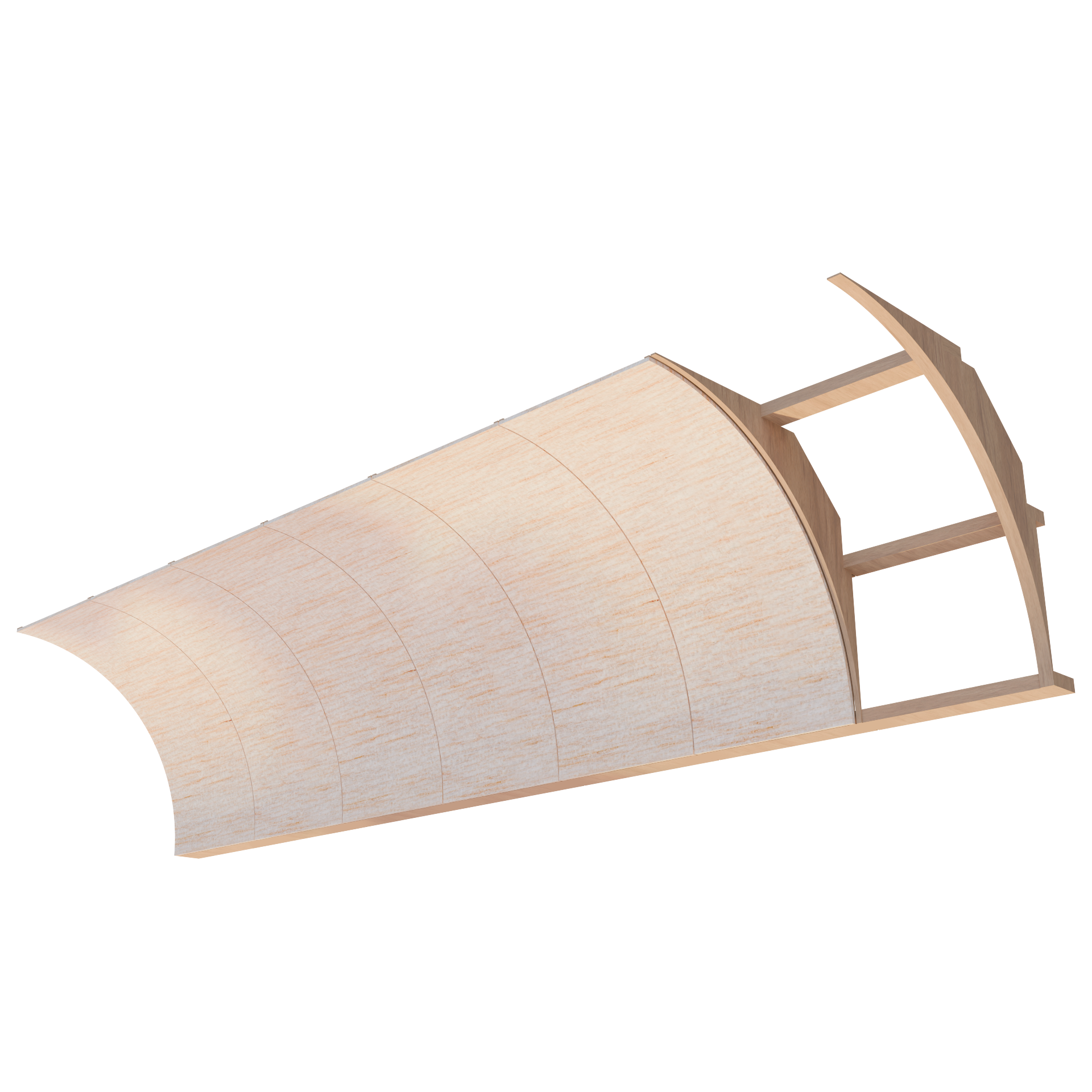

S-A37.5 (R=370 W-425 H=377)

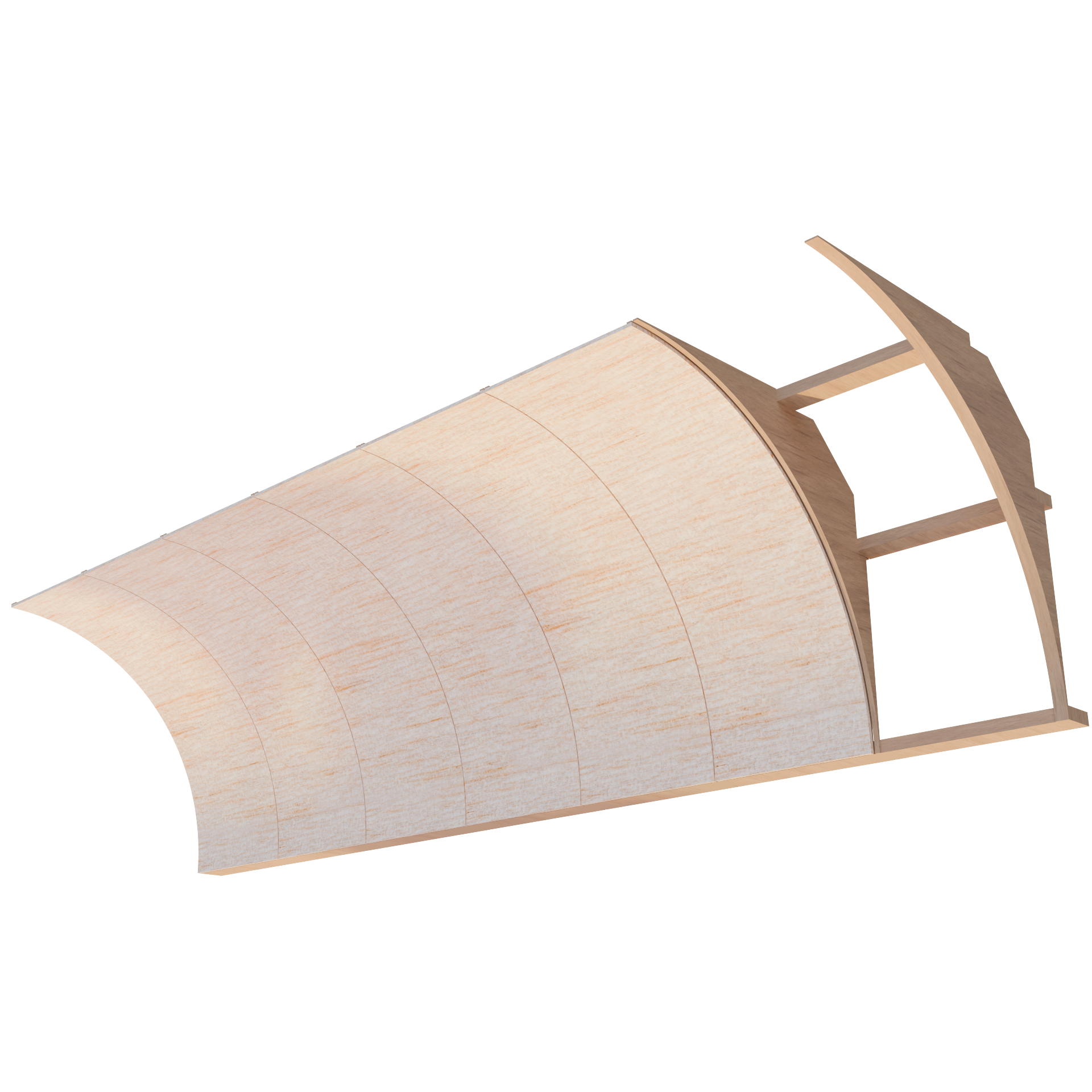

S-A45 (R=445 W=500 L=452)

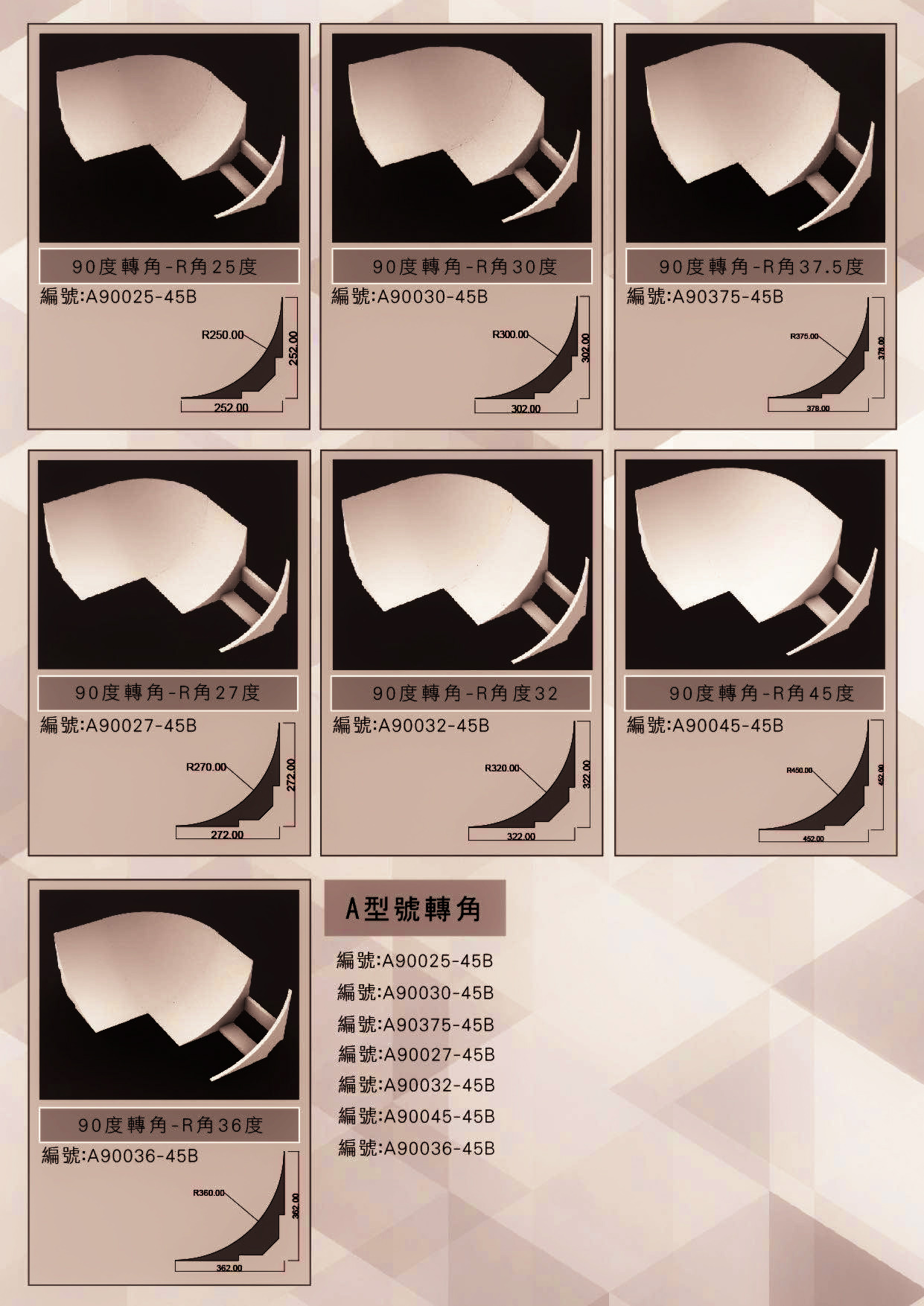

內凹轉角規格

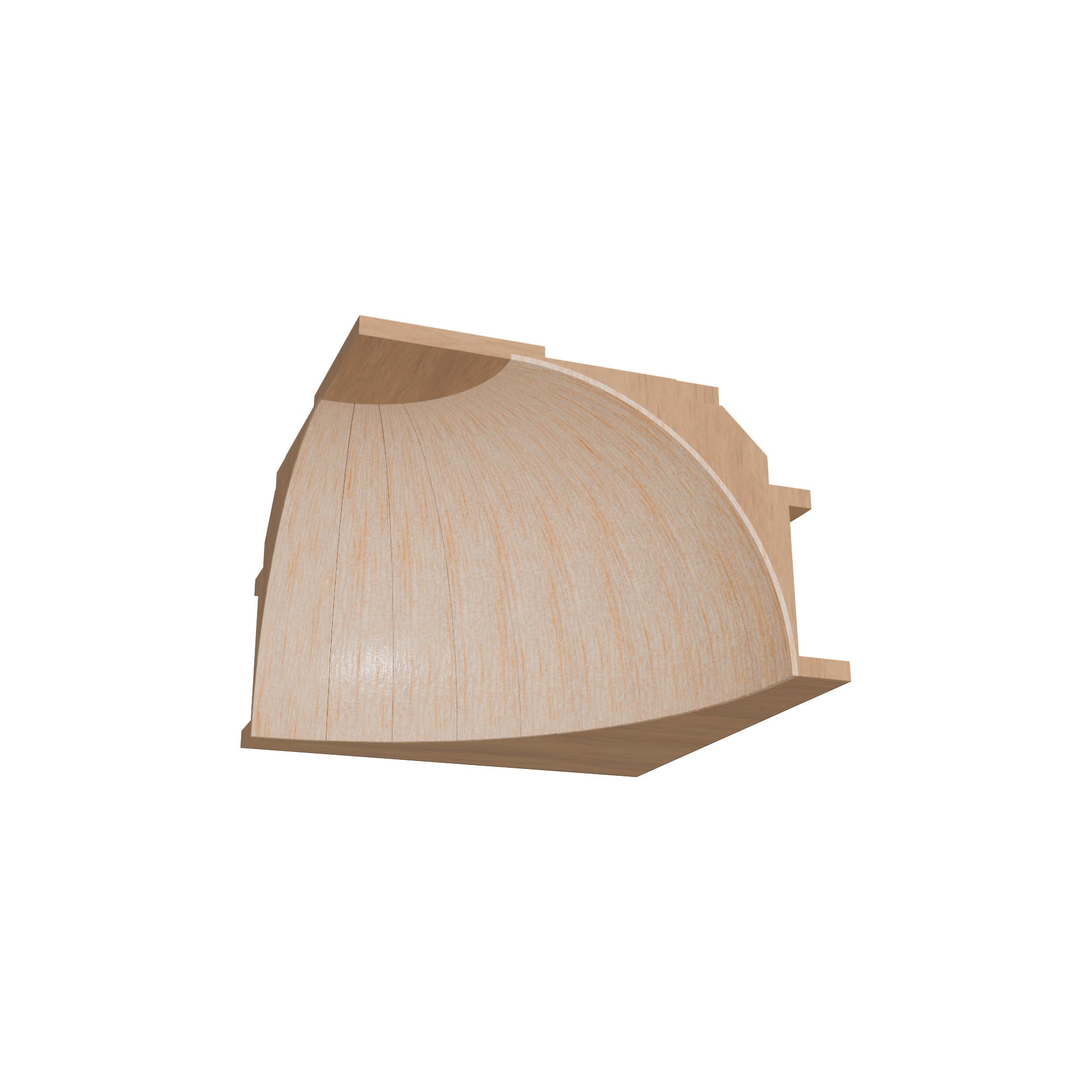

A25-R120(R=245 W=428.5 H=262)

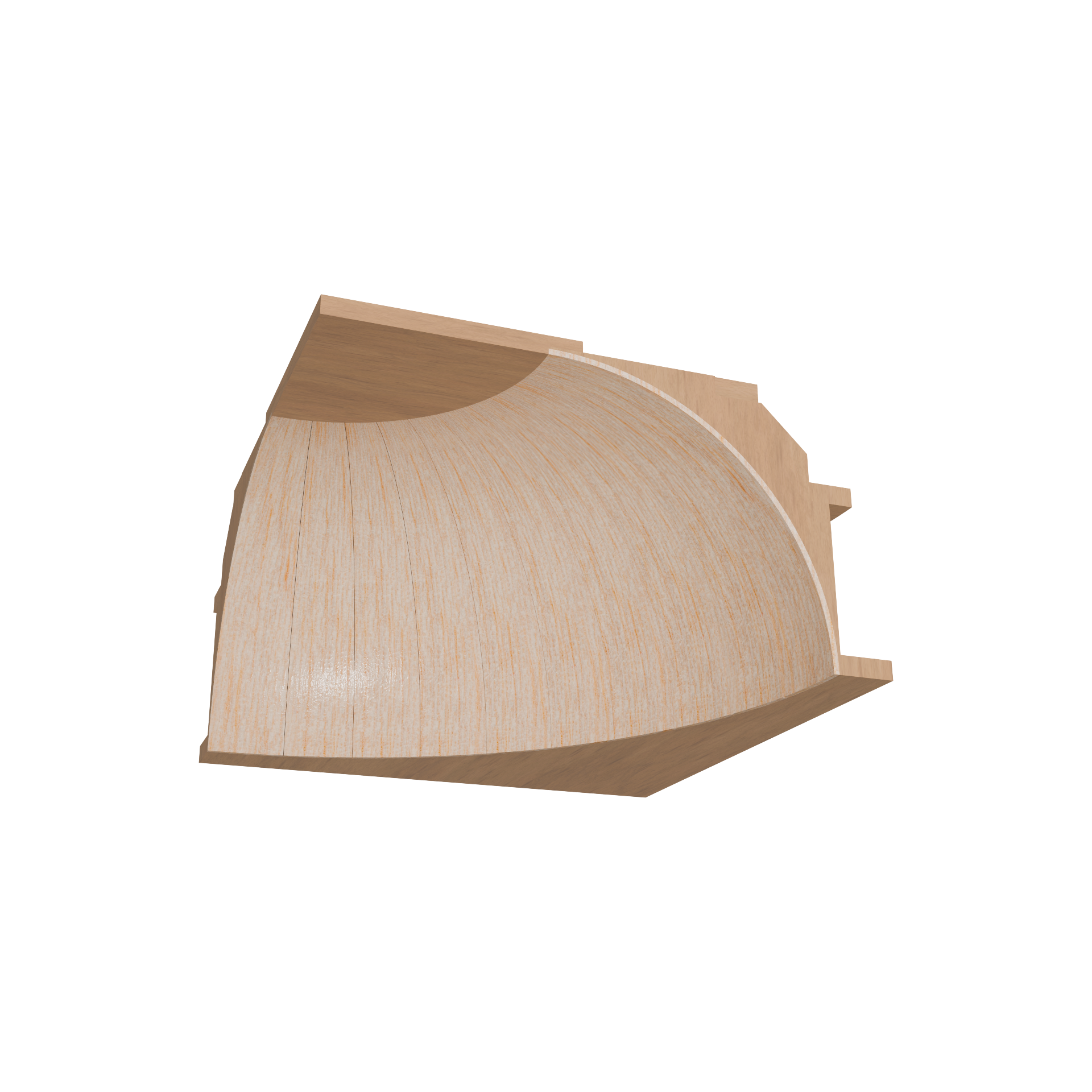

A25-R180(R=245 W=488.5 H=262)

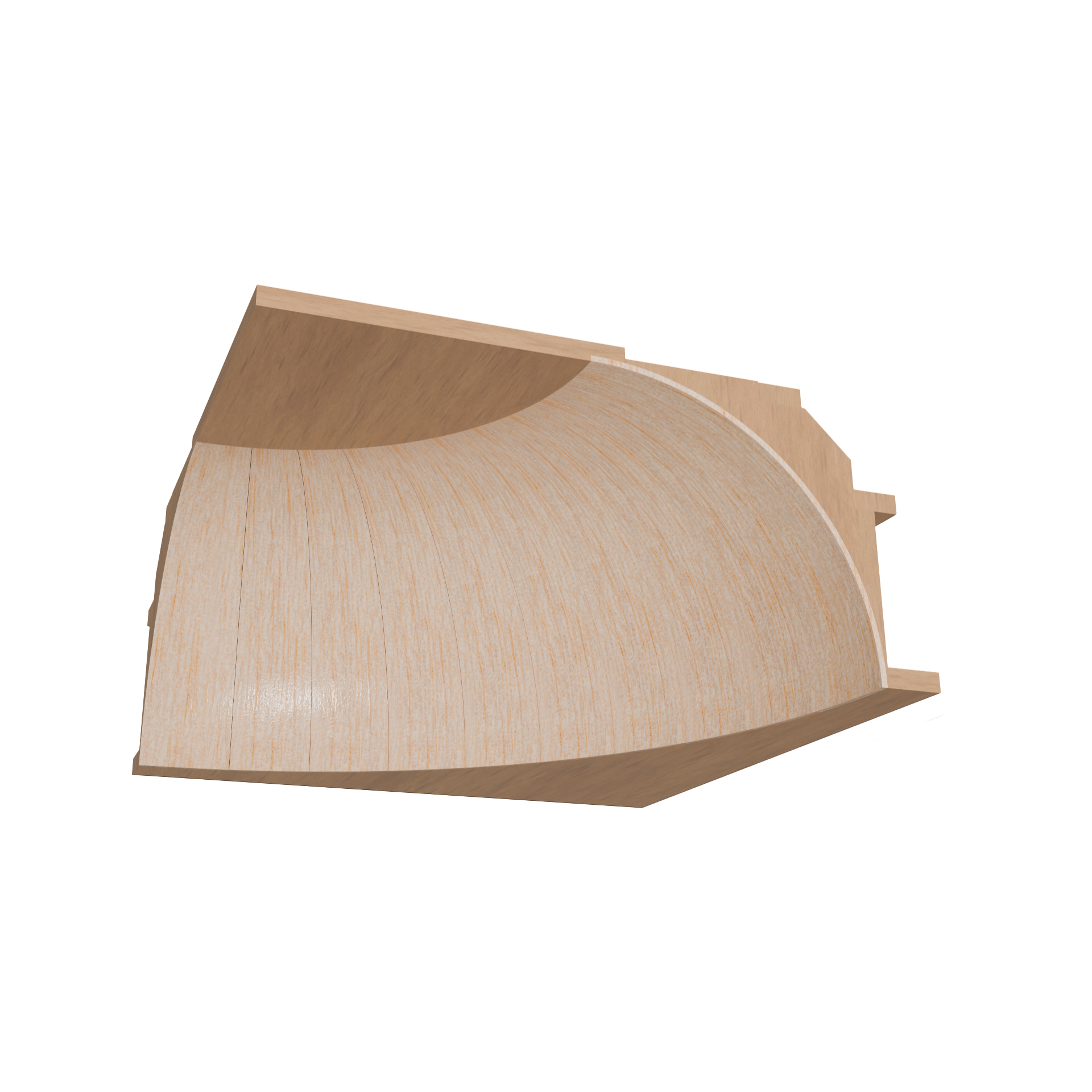

A25-R260(R=245 W=568.5 H=262)
A27-R120(R=265 W=448.5 H=282)

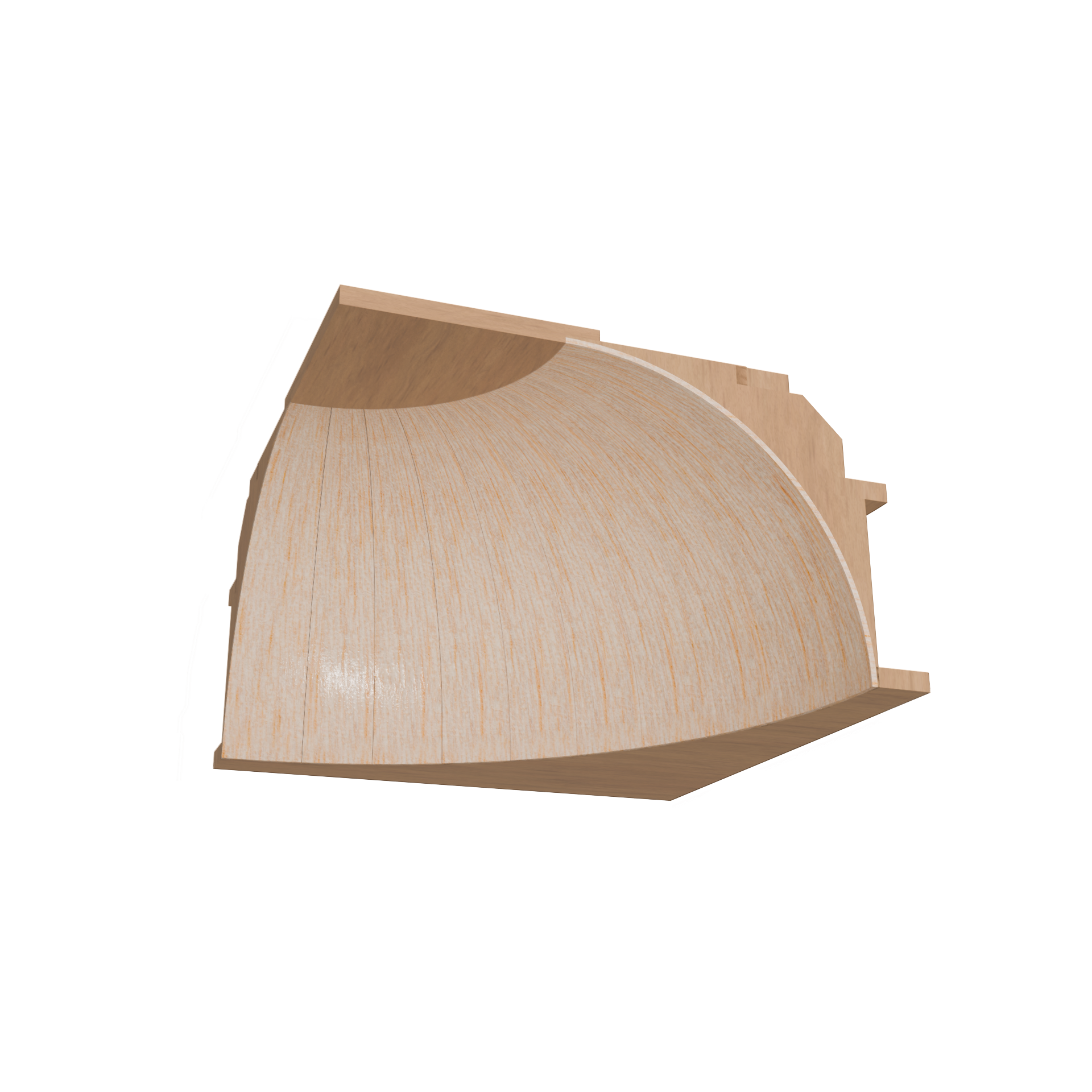

A27-R180(R=265 W=508.5 H=282)

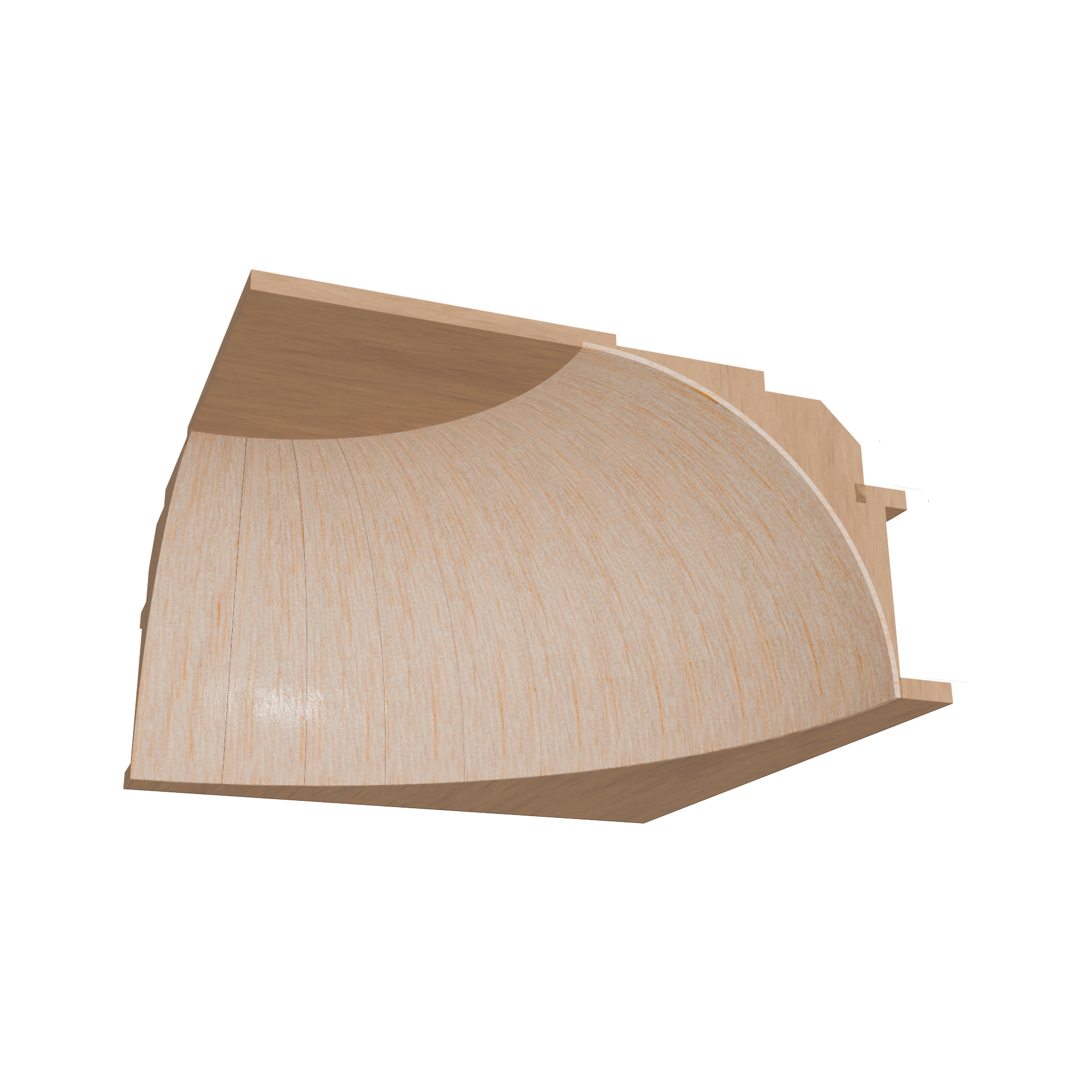

A27-R260(R=265 W=588.5 H=282)

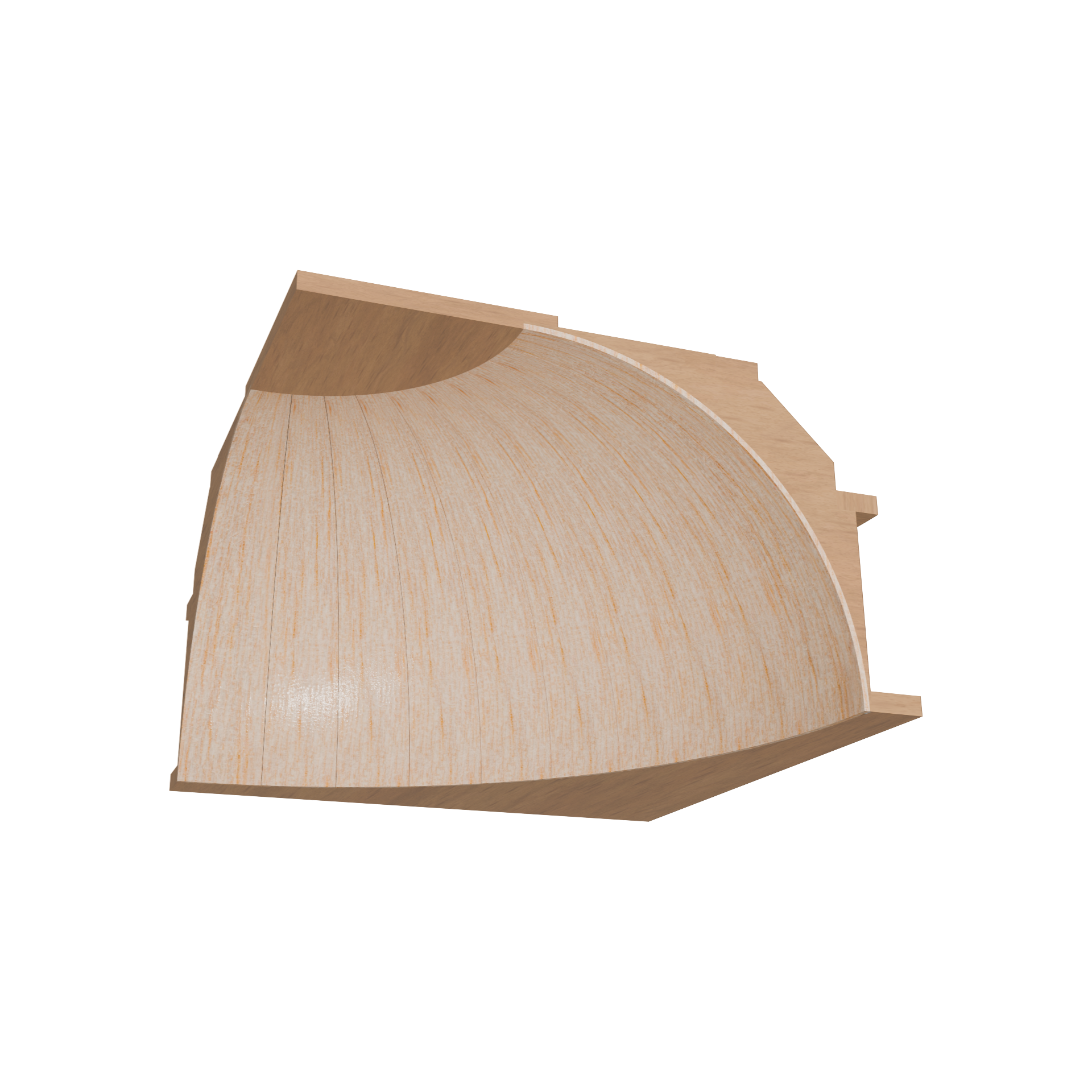

A30-R120(R=295 W=478.5 H=312)
A30-R180(R=295 W=538.5 H=312)

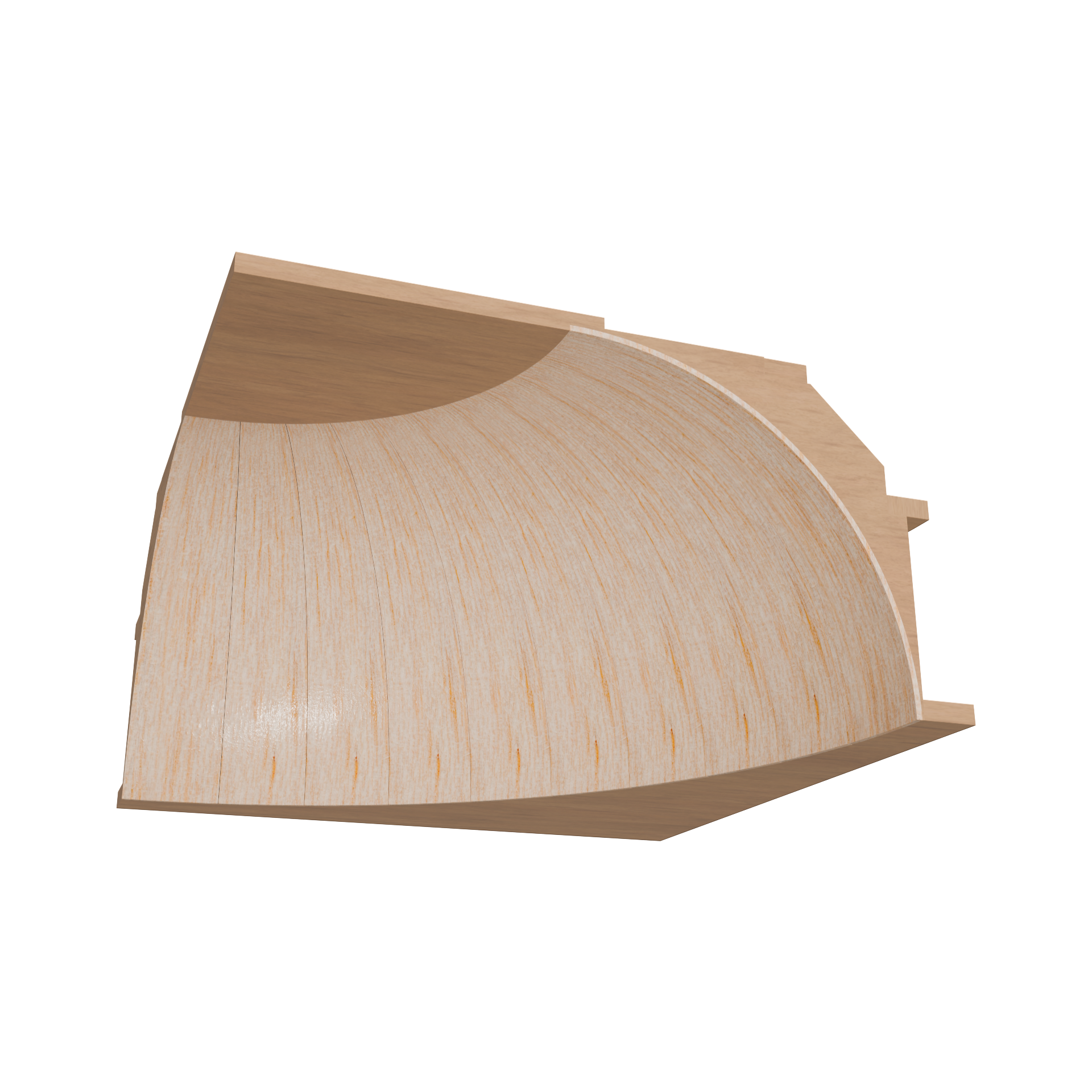

A30-R260(R=295 W=618.5 H=312)

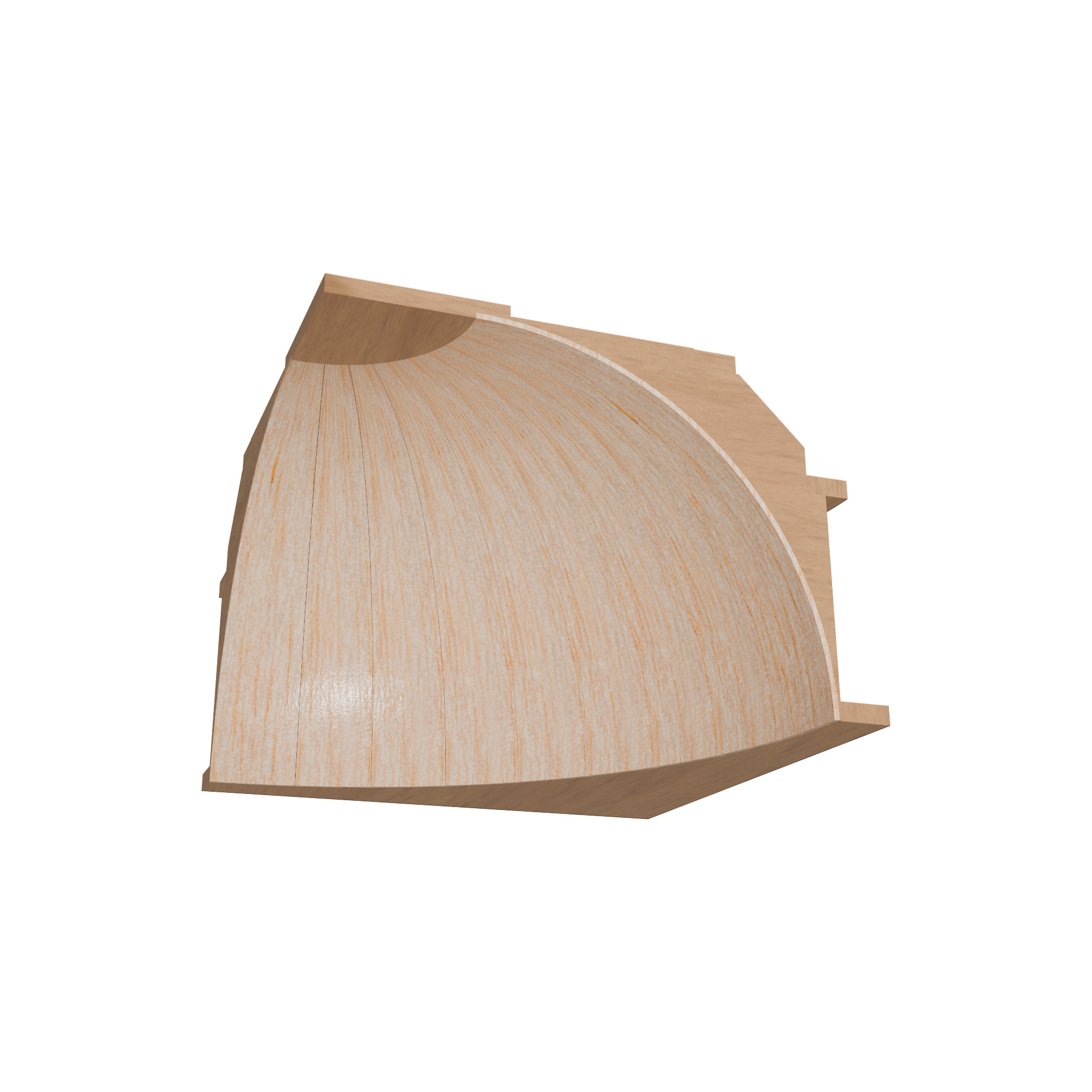

A32-R120(R=315 W=498.5 H=332)

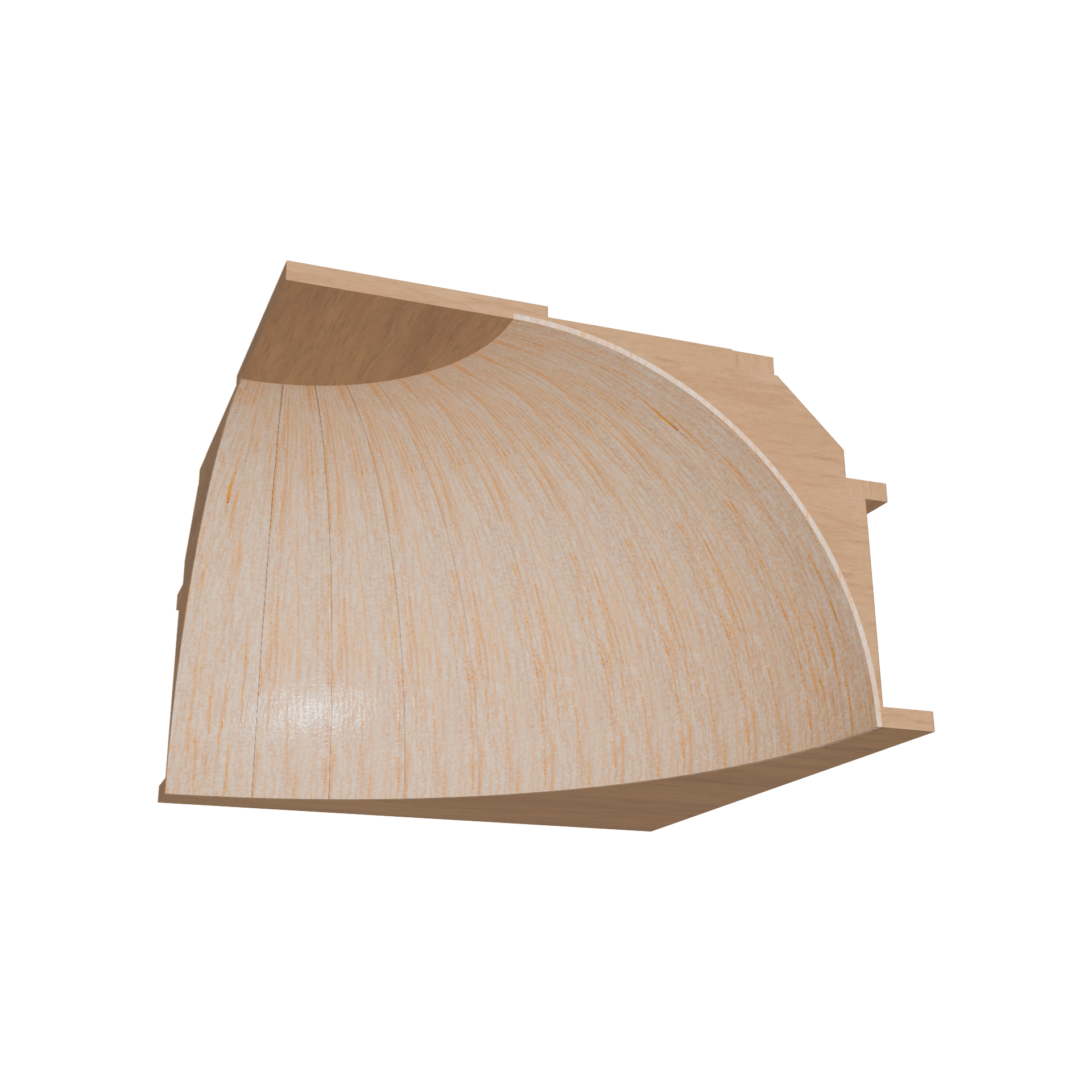

A32-R180(R=315 W=558.5 H=332)

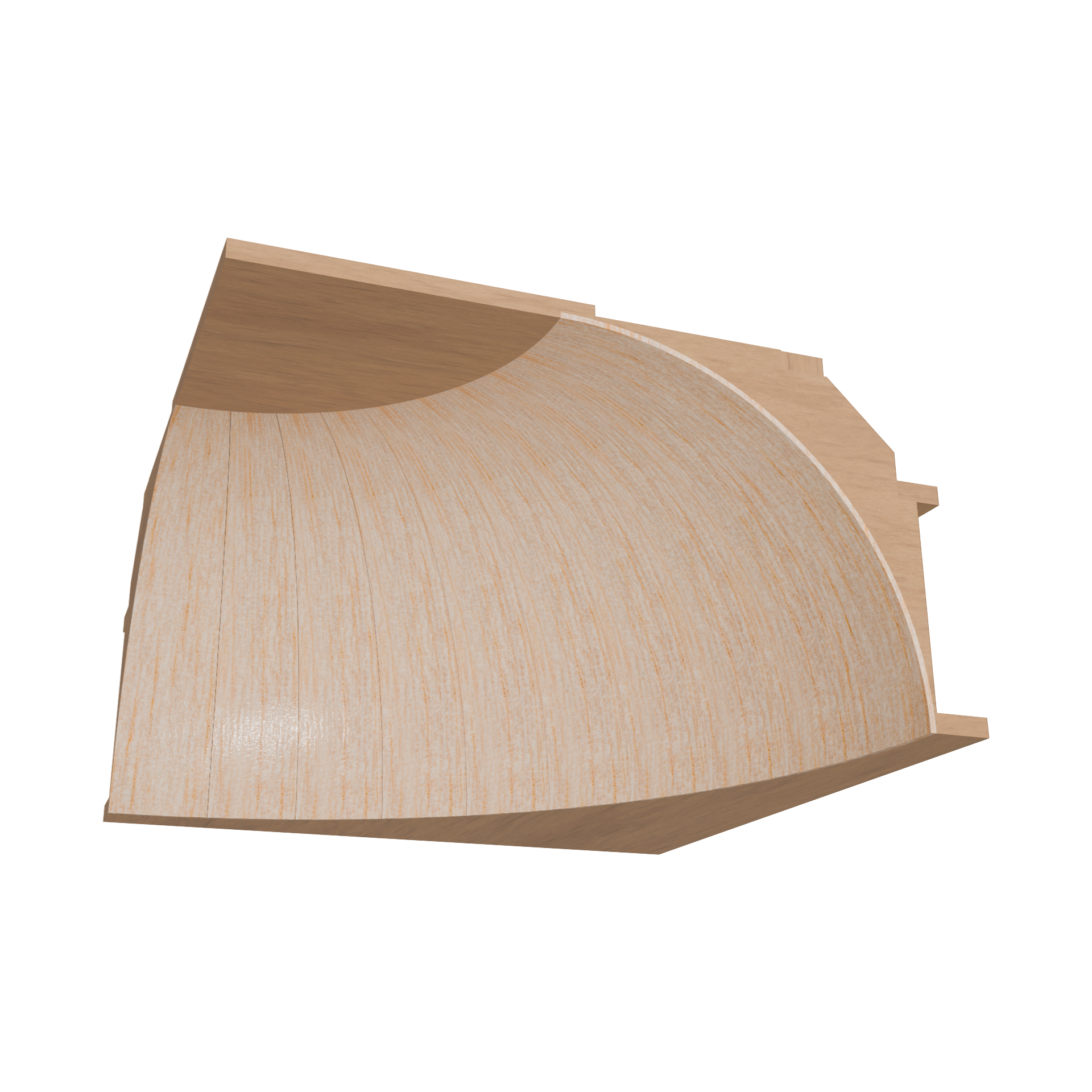

A32-R260(R=315 W=638.5 H=332)

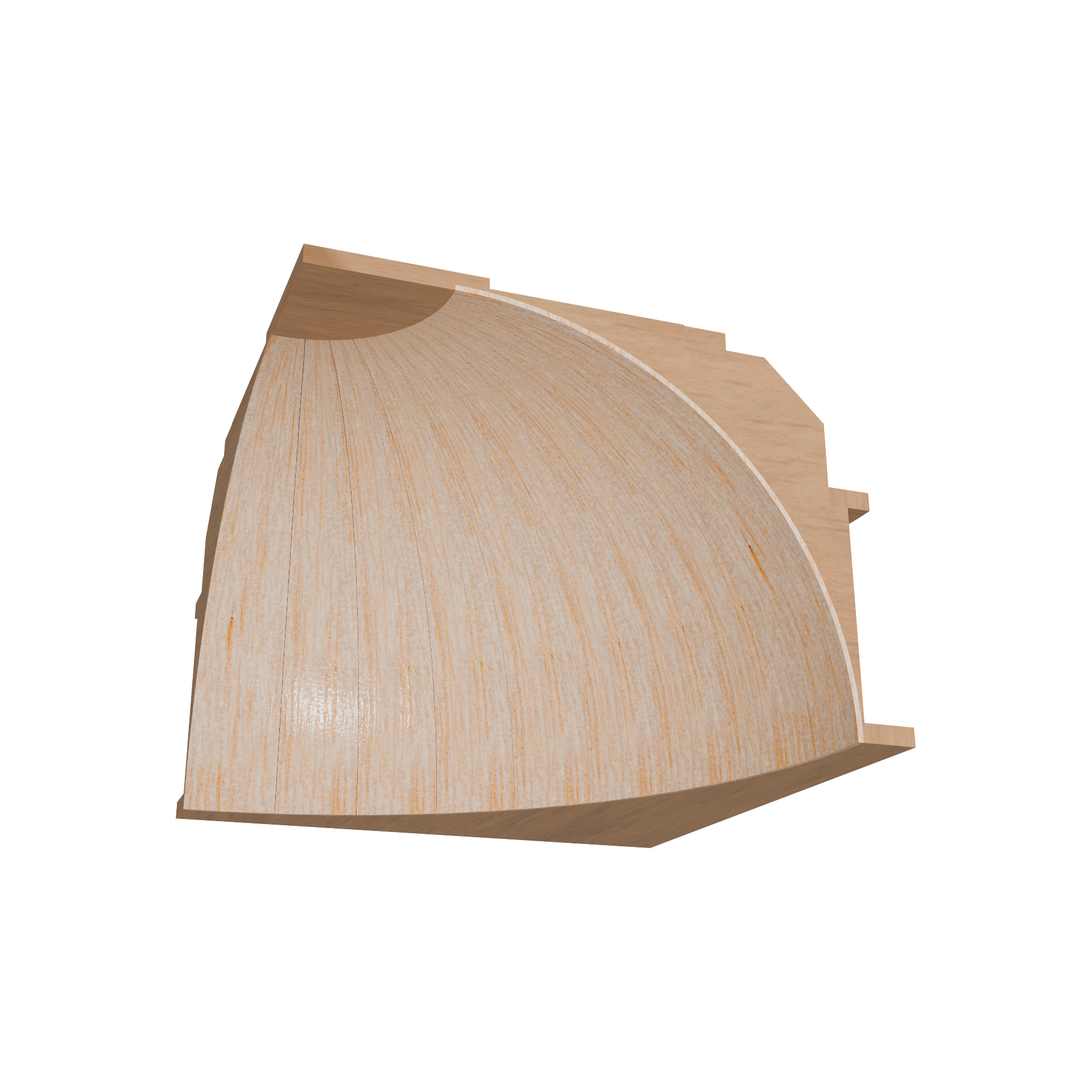

A36-R120(R=355 W=538.5 H=372)

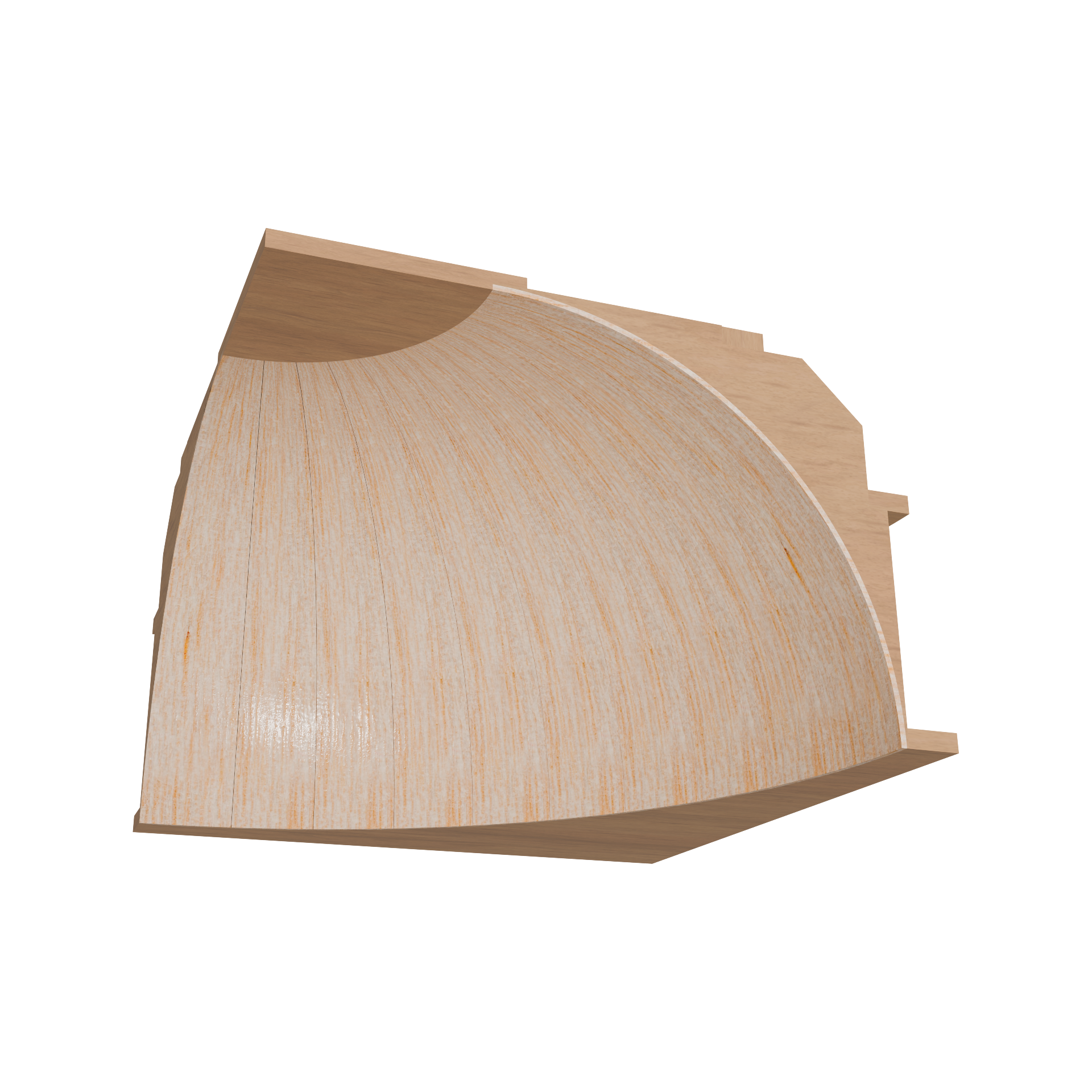

A36-R180(R=355 W=598.5 H=372)
A36-R260(R=355 W=678.5 H=372)

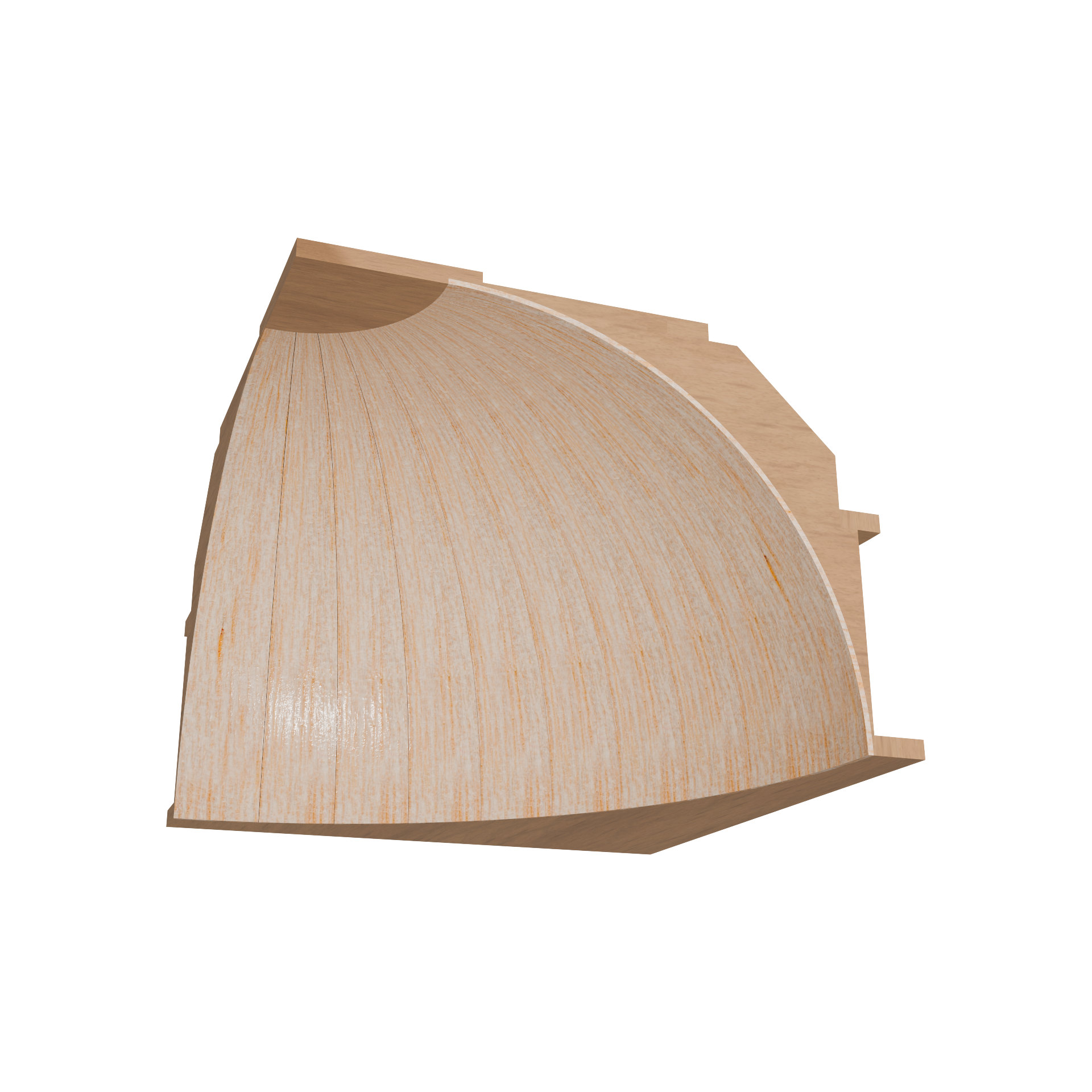

A37.5-R120(R=370 W=553.5 H=387)

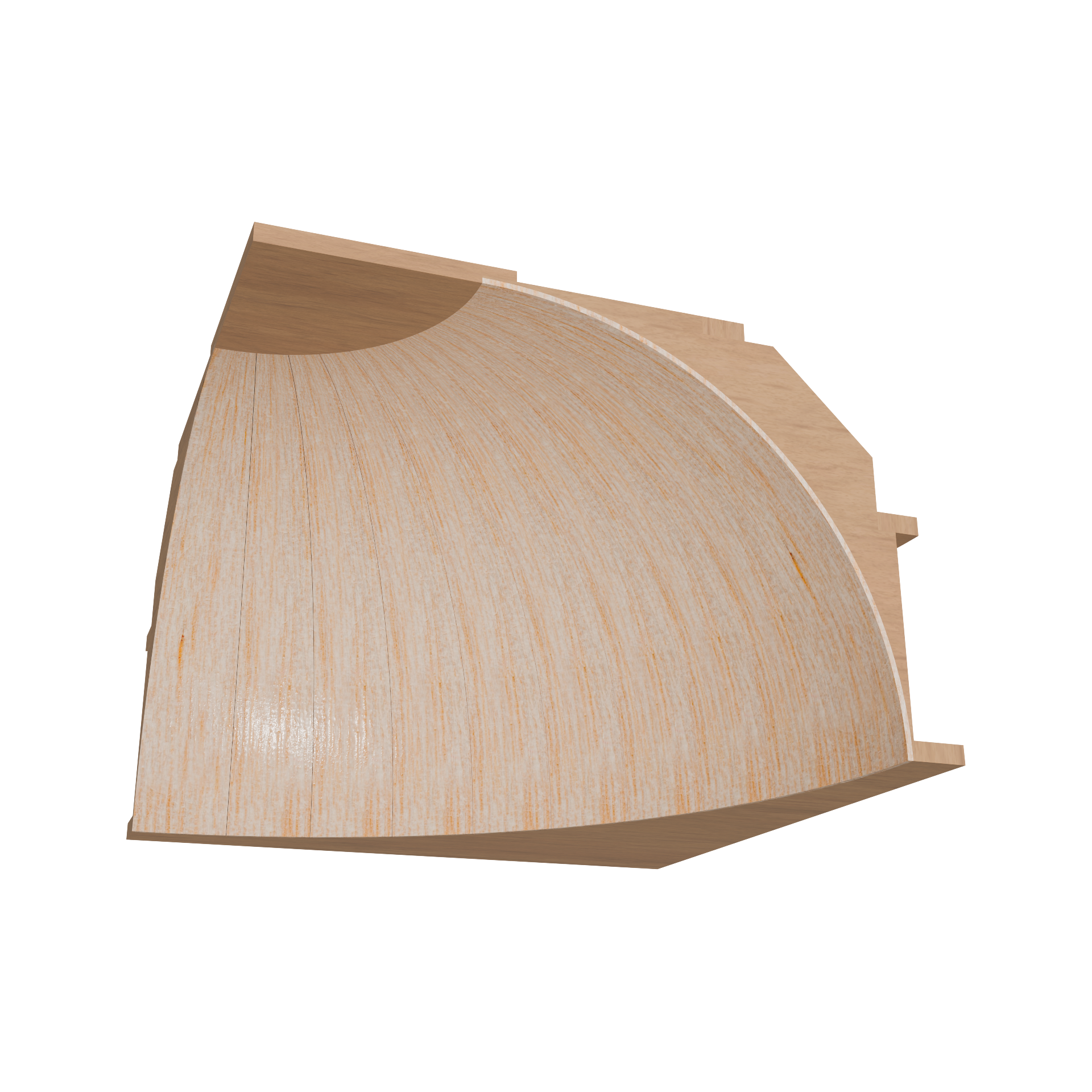

A37.5-R180(R=370 W=613.5 H=387)

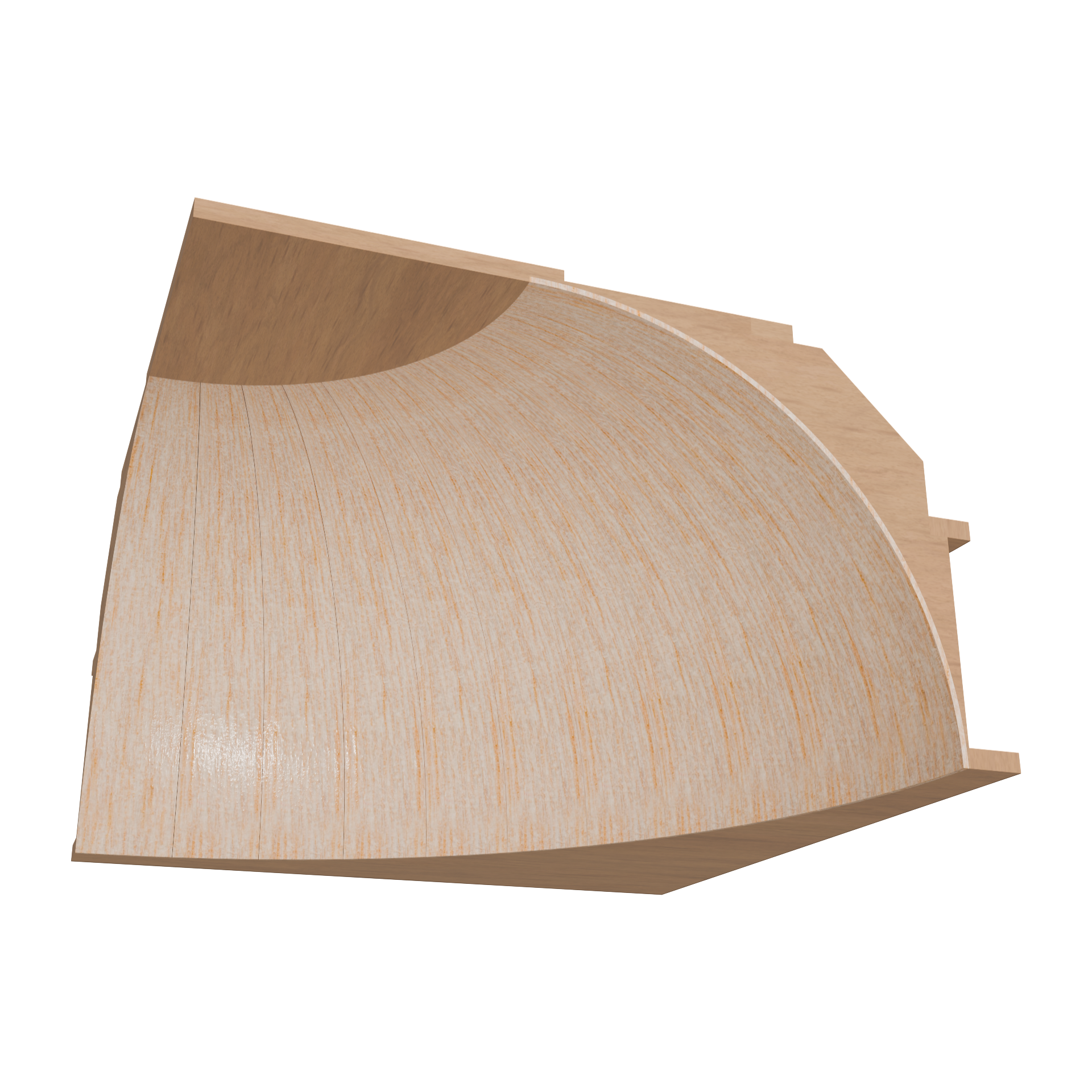

A37.5-R260(R=370 W=693.5 H=387)

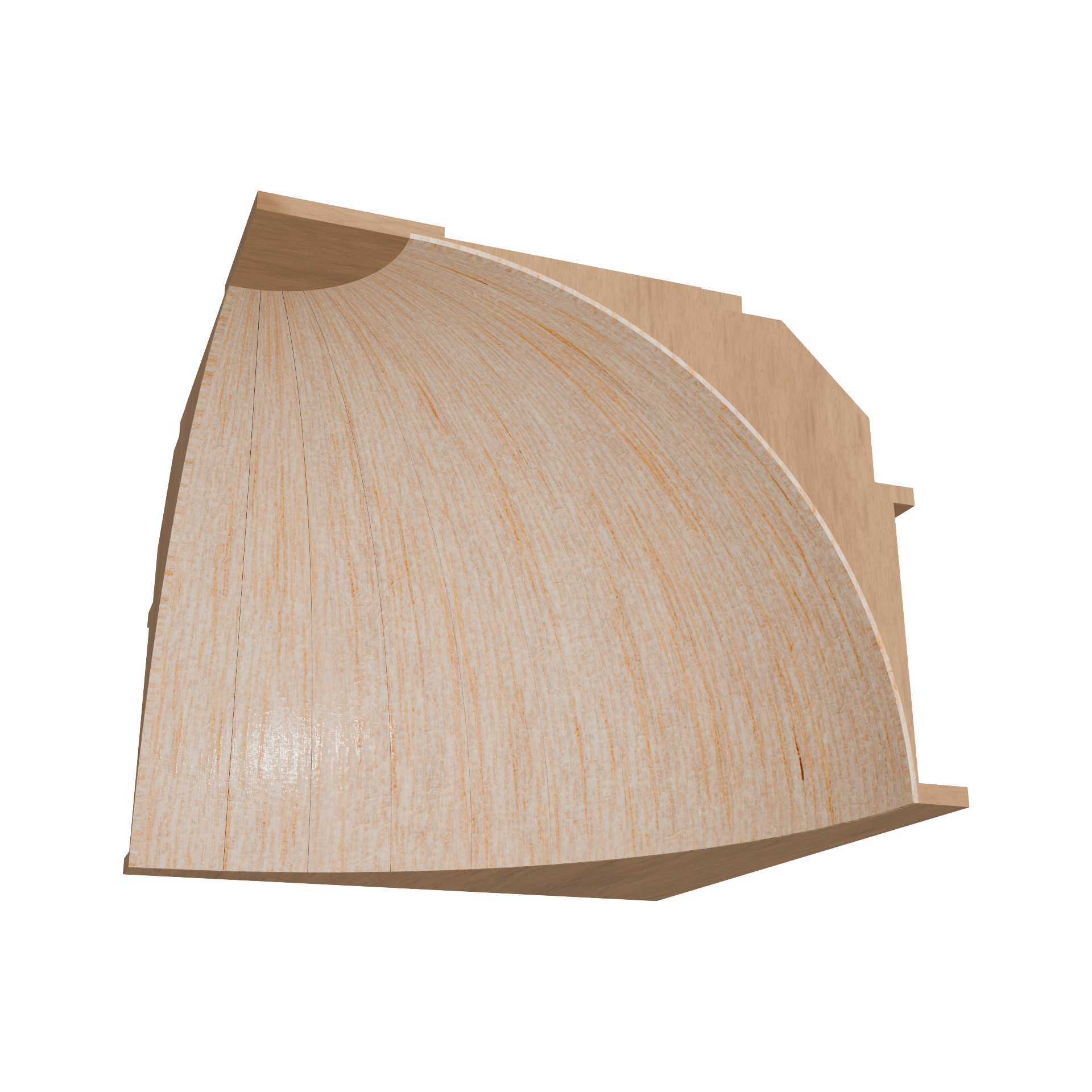

A45-R120(R=445 W=628.5 H=462)

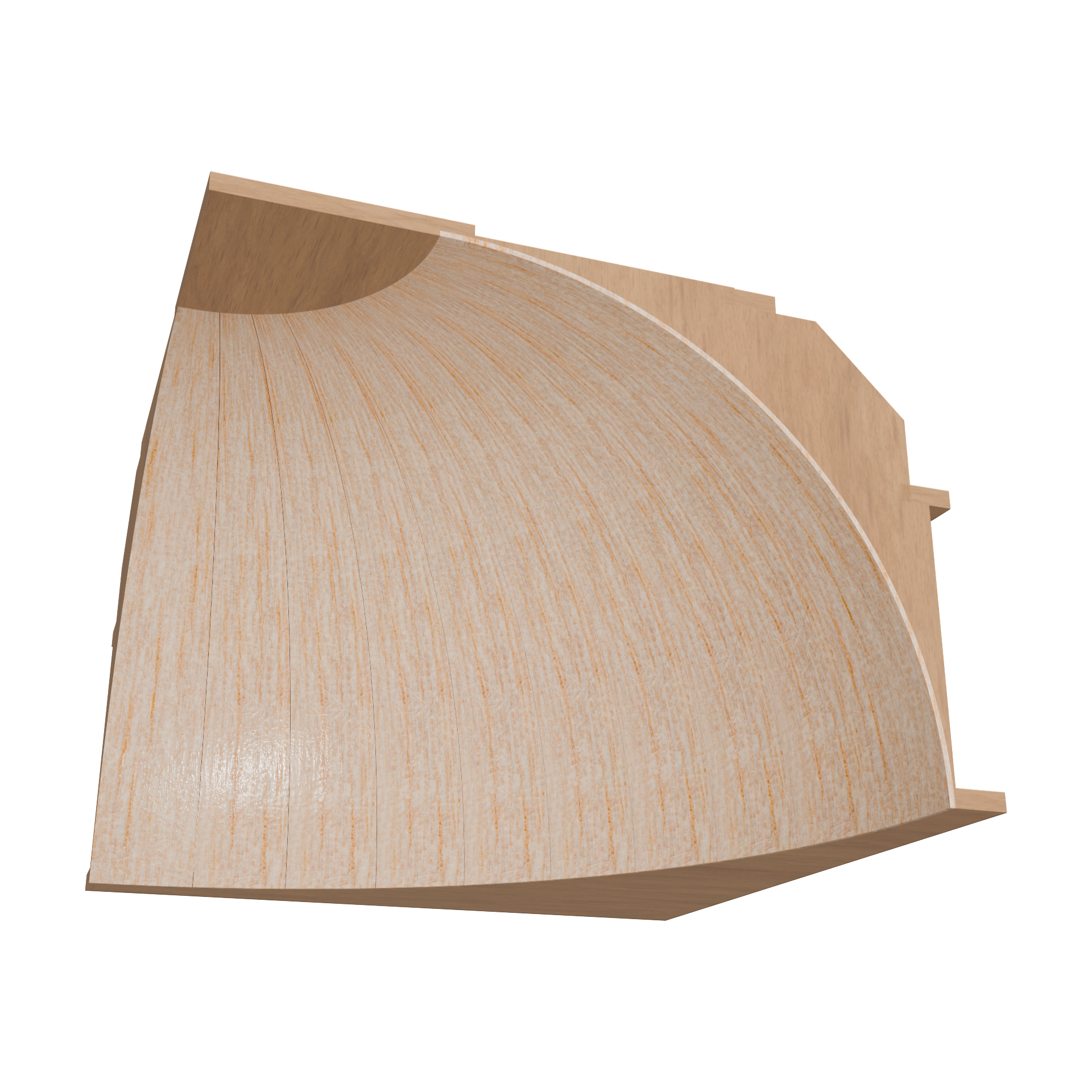

A45-R180(R=445 W=688.5 H=462)

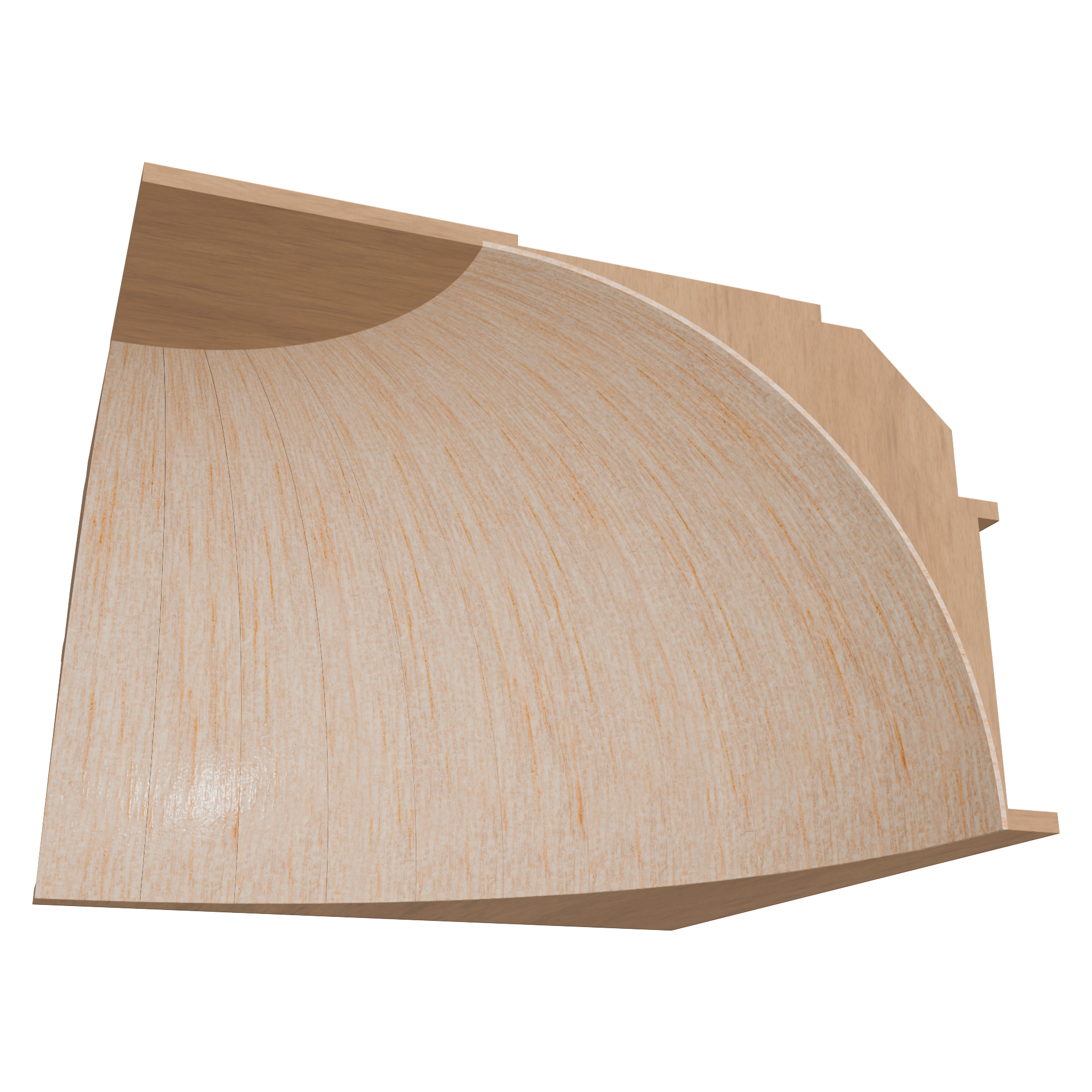

A45-R260(R=445 W=768.5 H=462)

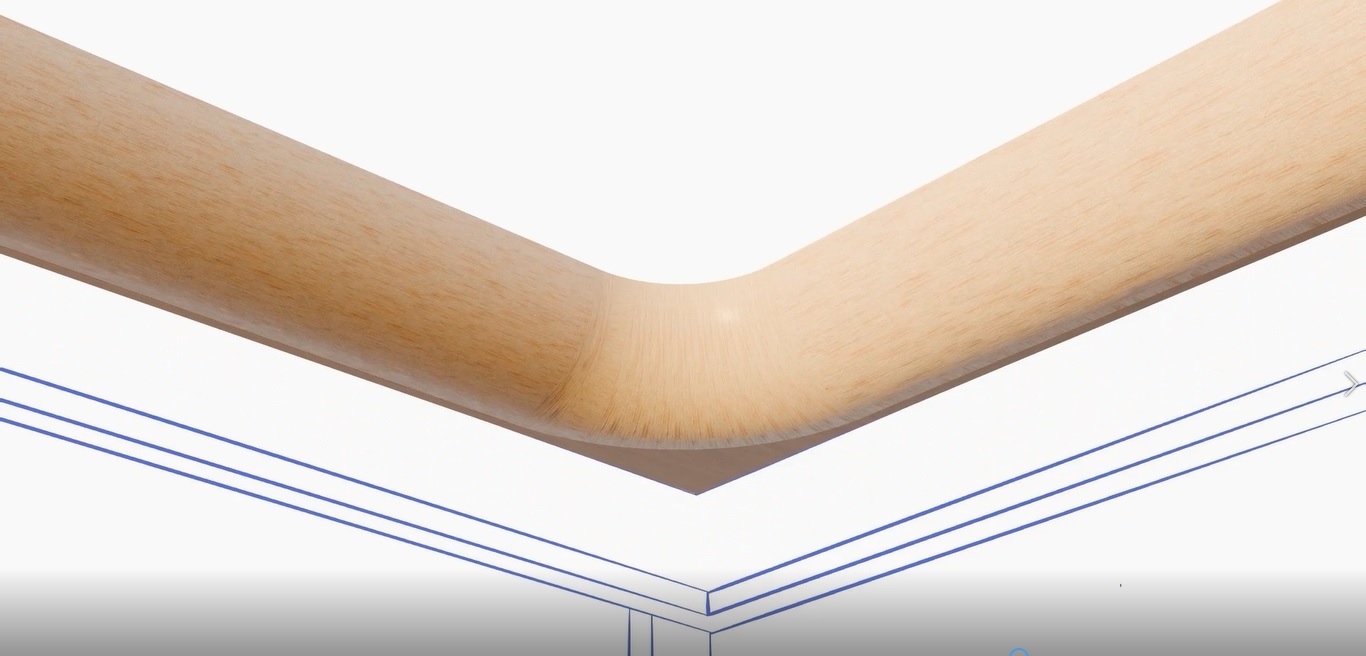

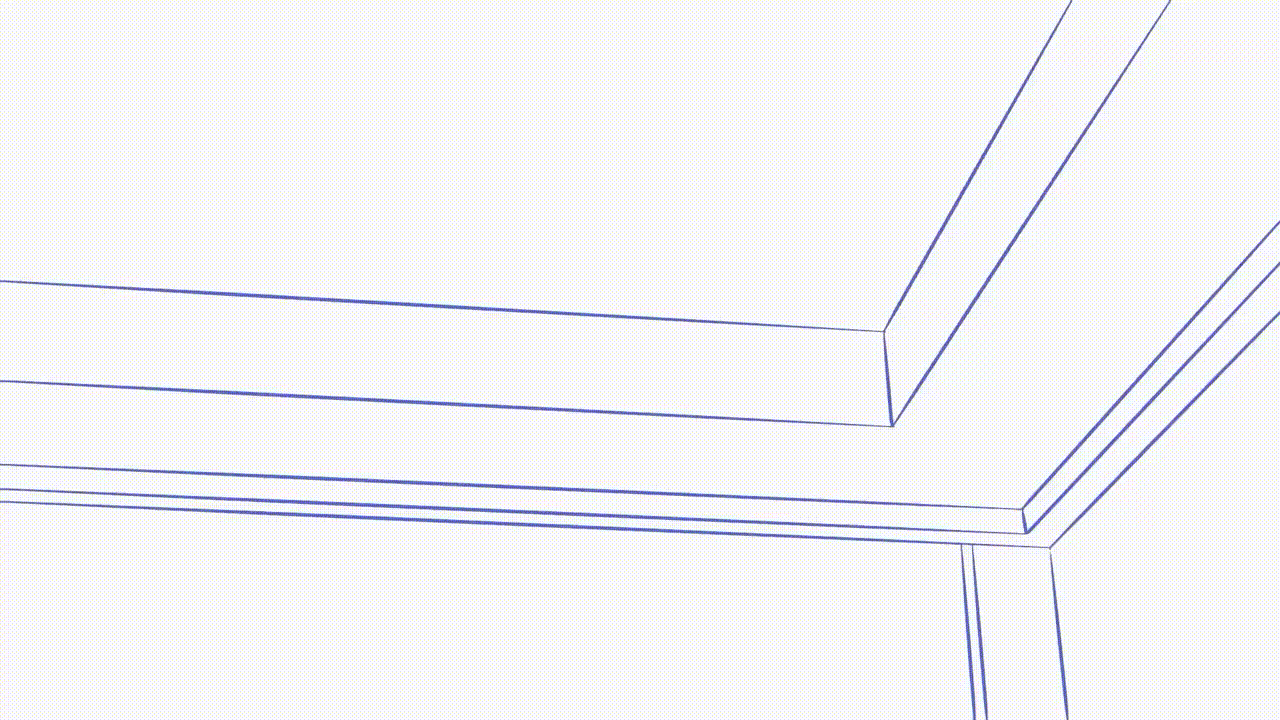

造型天花板弧形骨架 - 外凸角

外凸骨料規格
B25 (R=250 L=275)
B27 (R=270 L=295)
B30 (R=300 L=325)
B32 (R=320 L=345)
B36 (R=360 L=385)
B37.5 (R=375 L=400)
B45 (R=450 L=475)
外凸直條規格

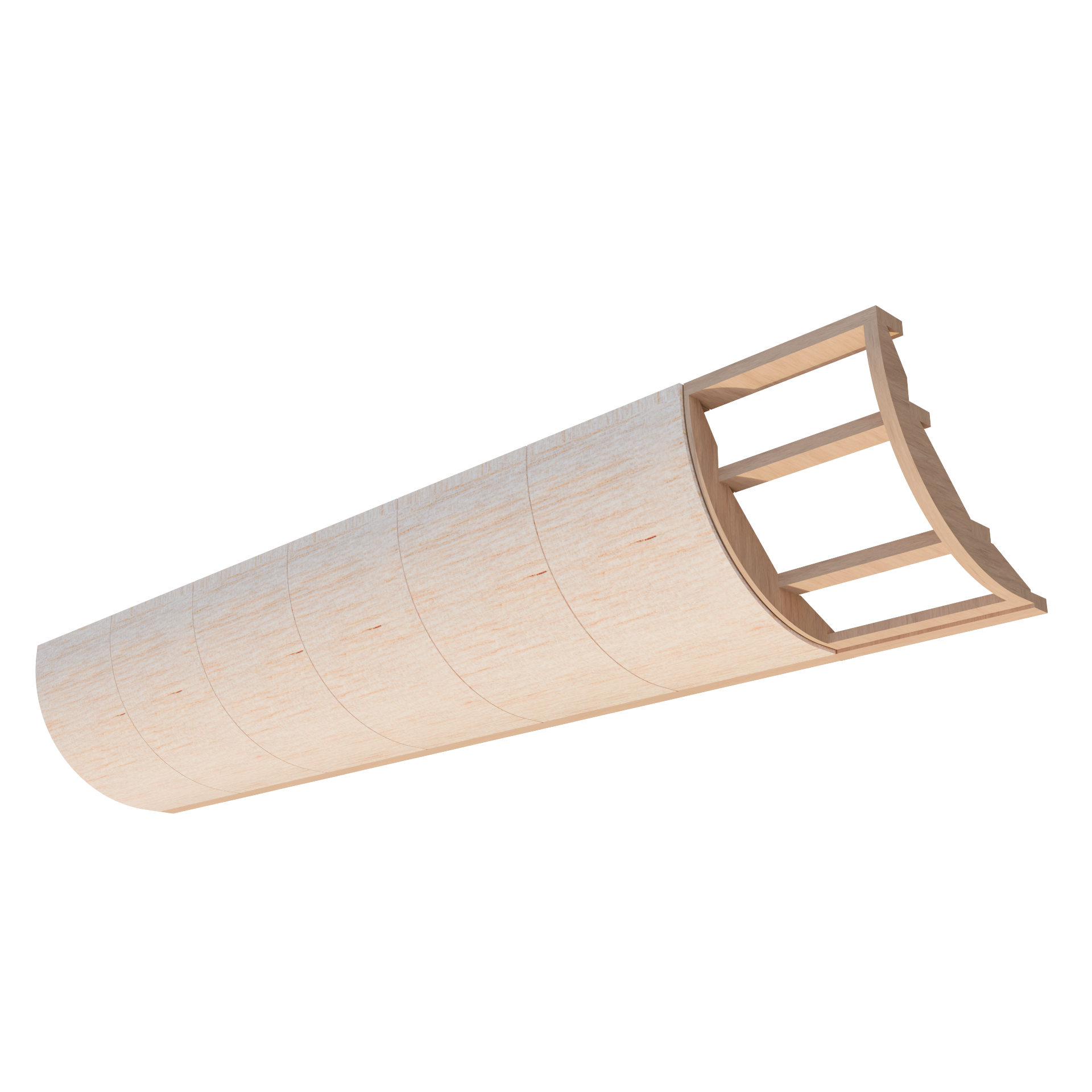

S-B25 (R=245 W=315 H=272)

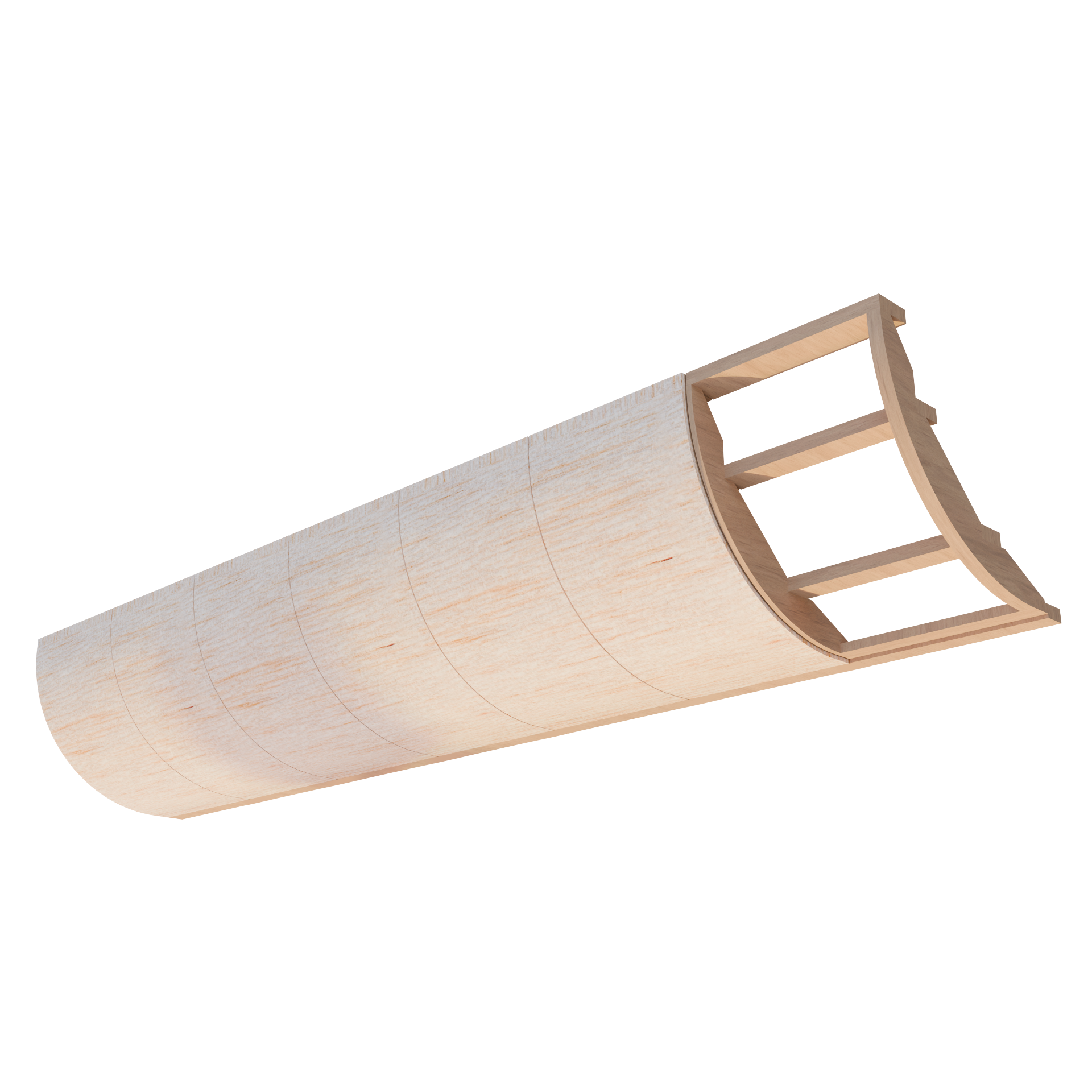

S-B27 (R=265 W=335 H292)
S-B30 (R=295 W=365 H=322)

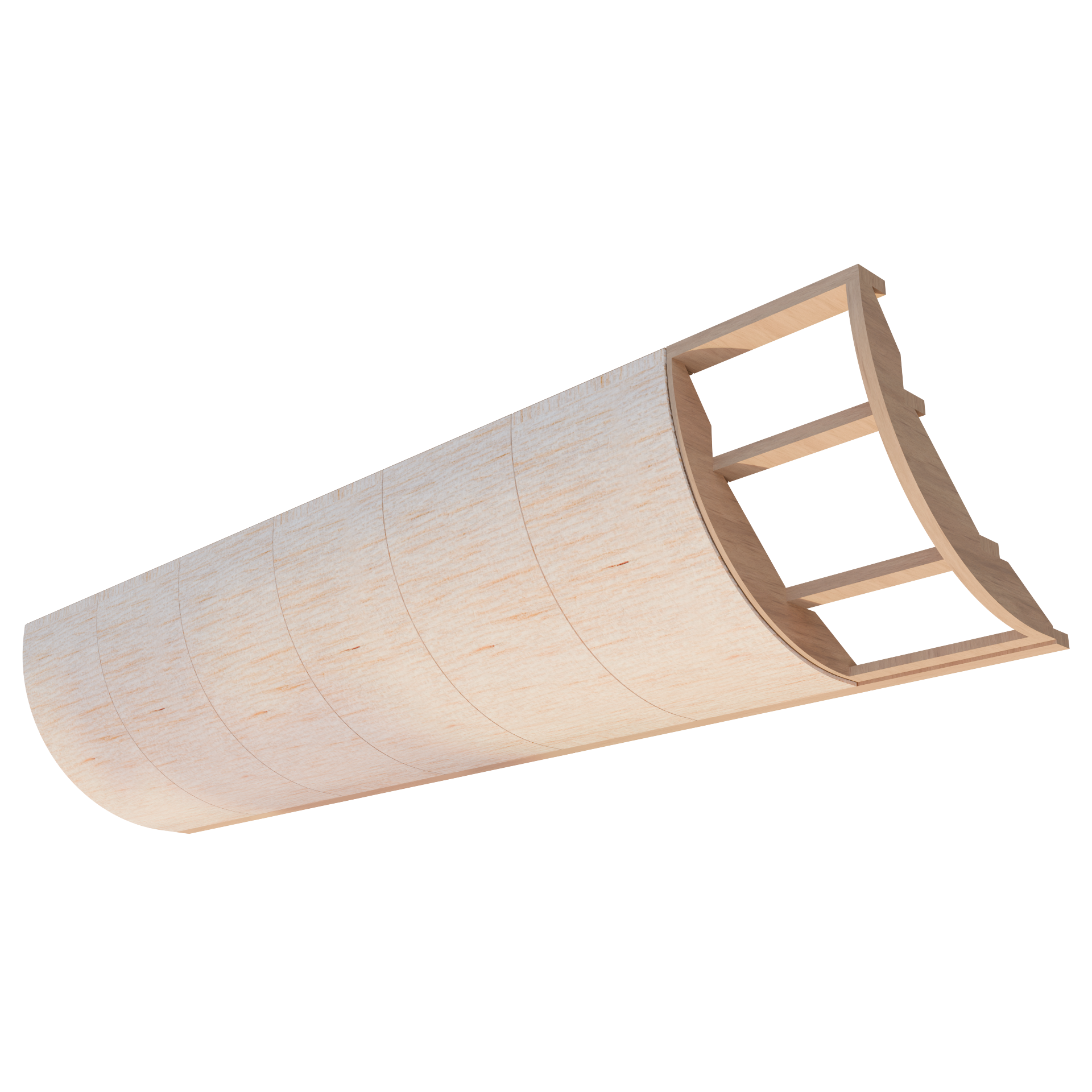

S-B32 (R=315 W=382.5 H=342)

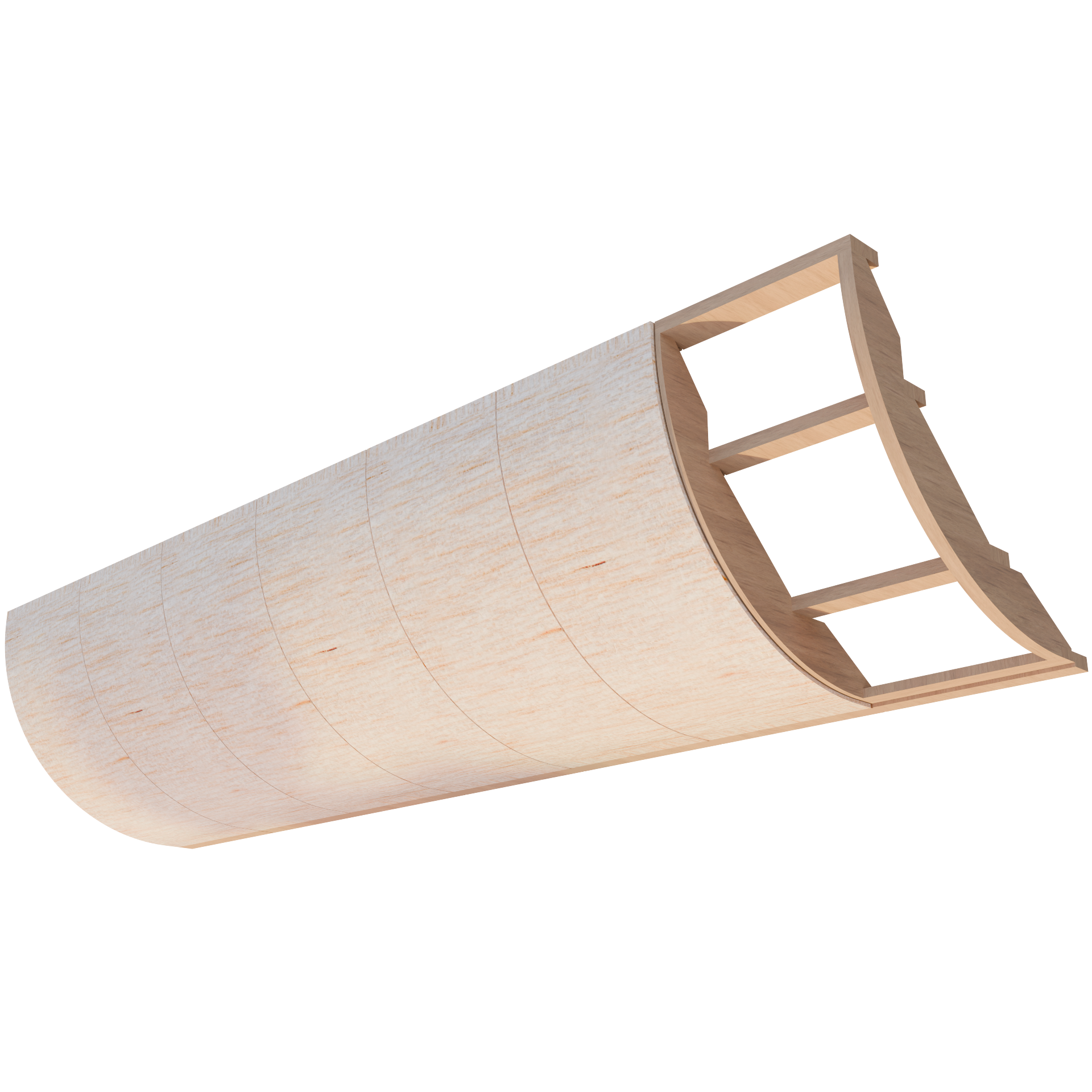

S-B36 (R=355 W=425 H=382)

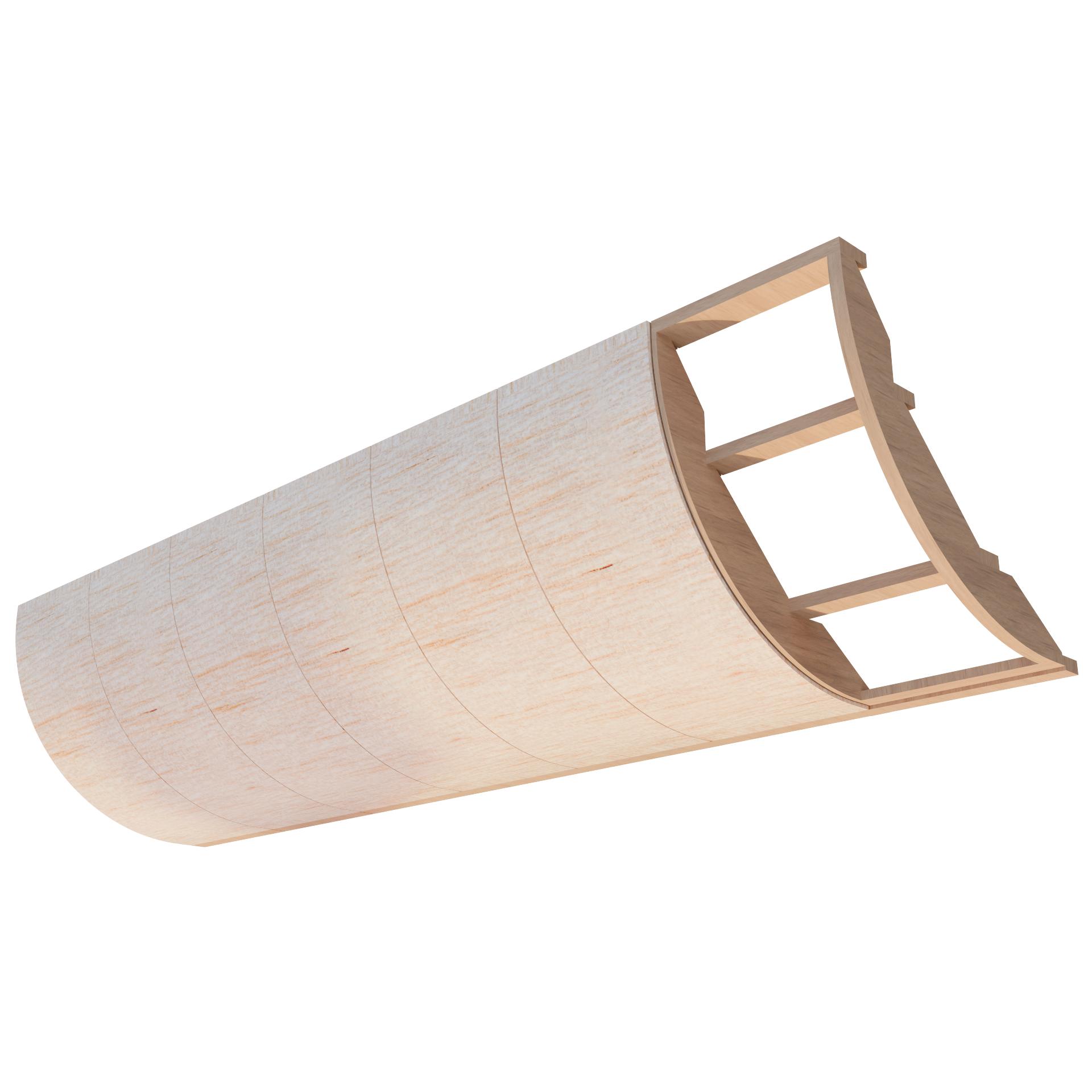

S-B37.5 (R=370 W=440 H=397)

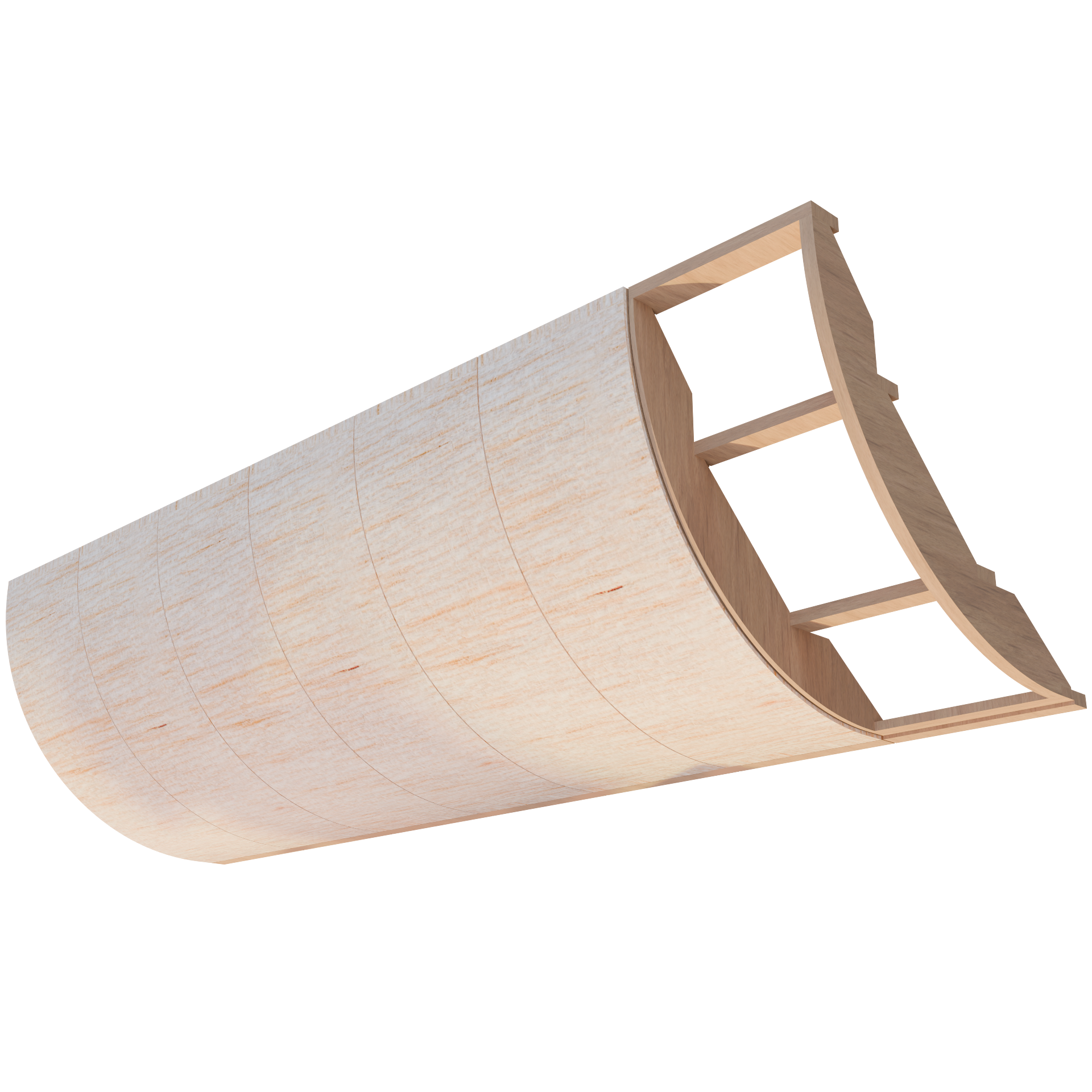

S-B45 (R=445 W=516.25 L=472)
外凸轉角規格

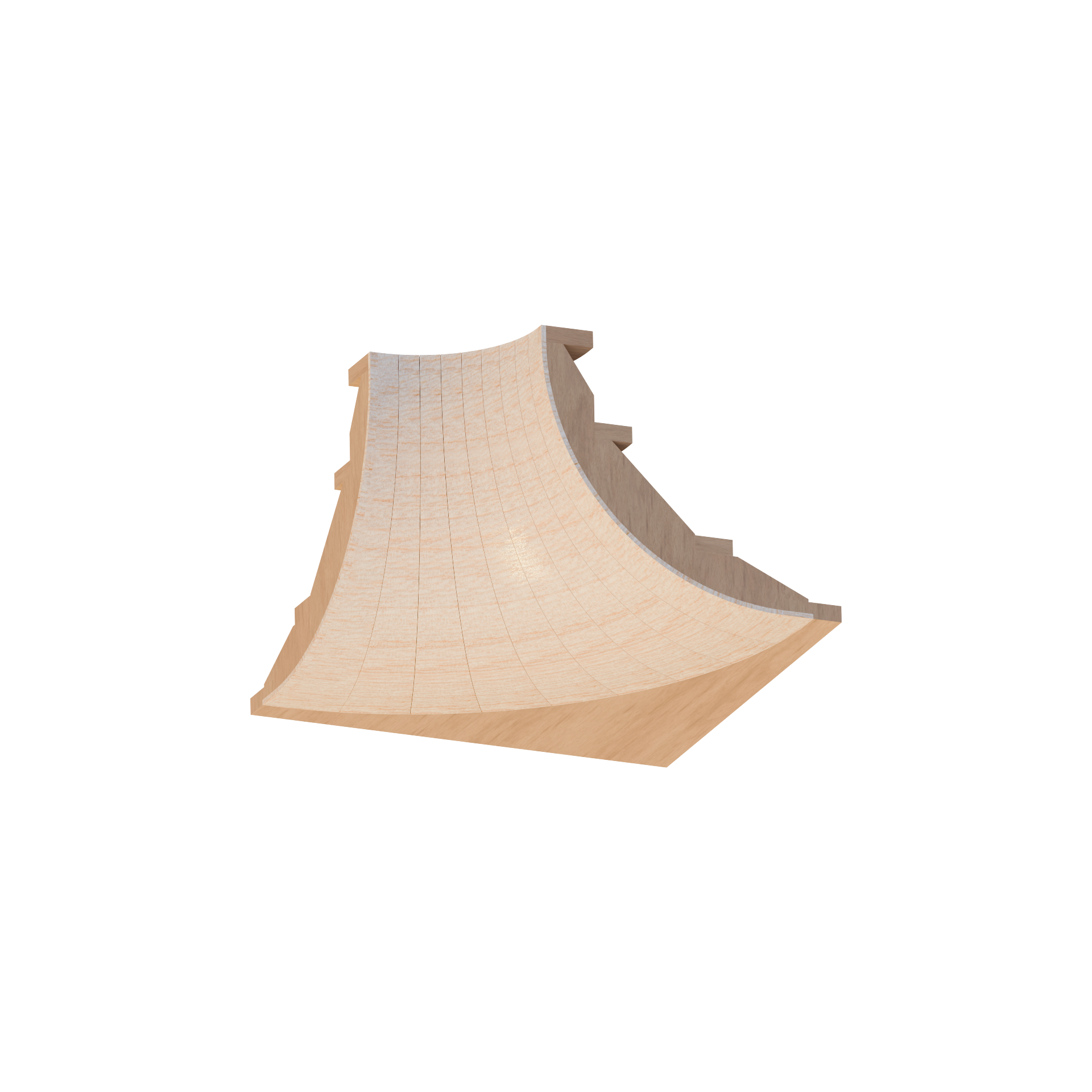

B25-R120(R=245 W=443.5 H=272)
B25-R180(R=245 W=503.5 H=272)

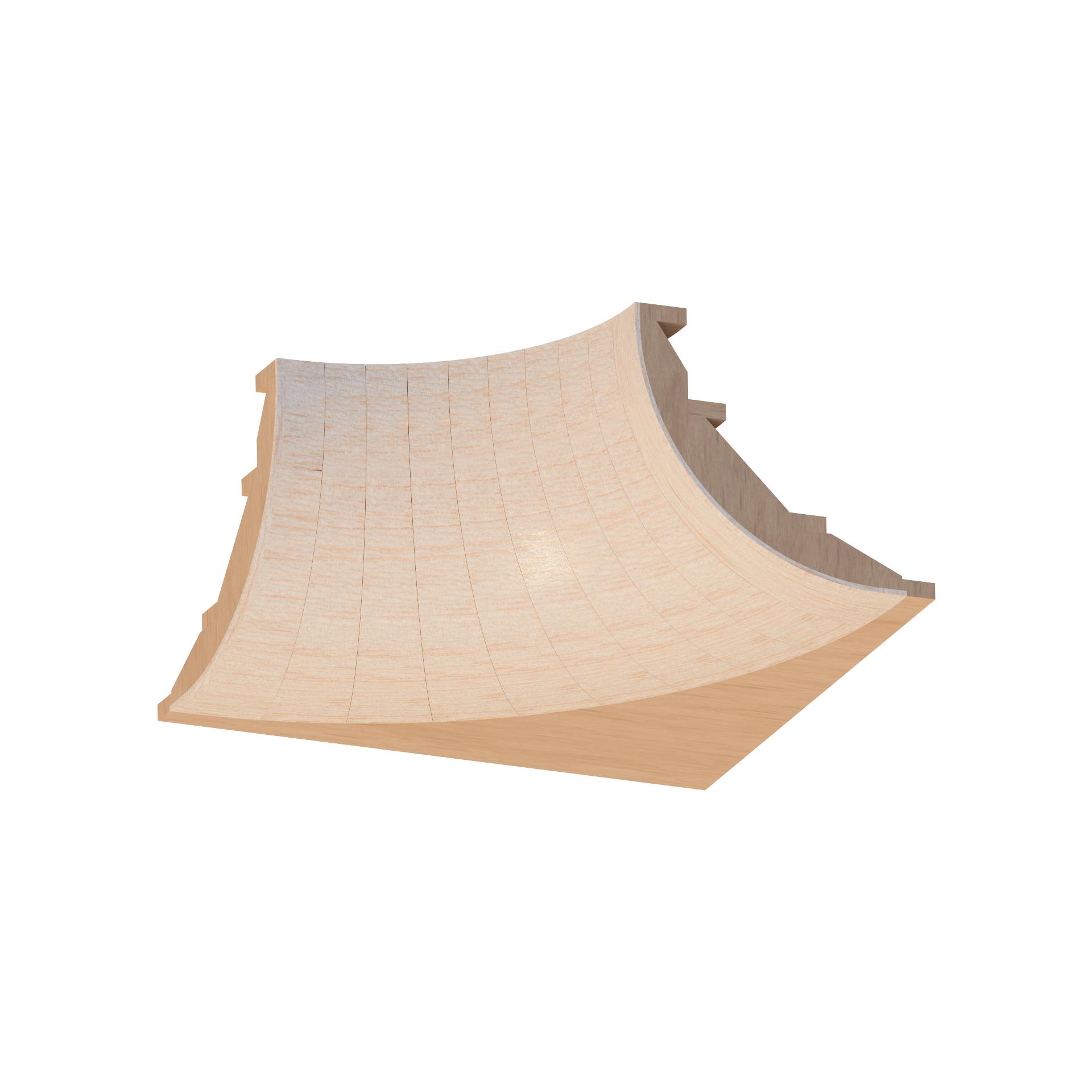

B25-R260(R=245 W=583.5 H=272)
B27-R120(R=265 W=463.5 H=292)

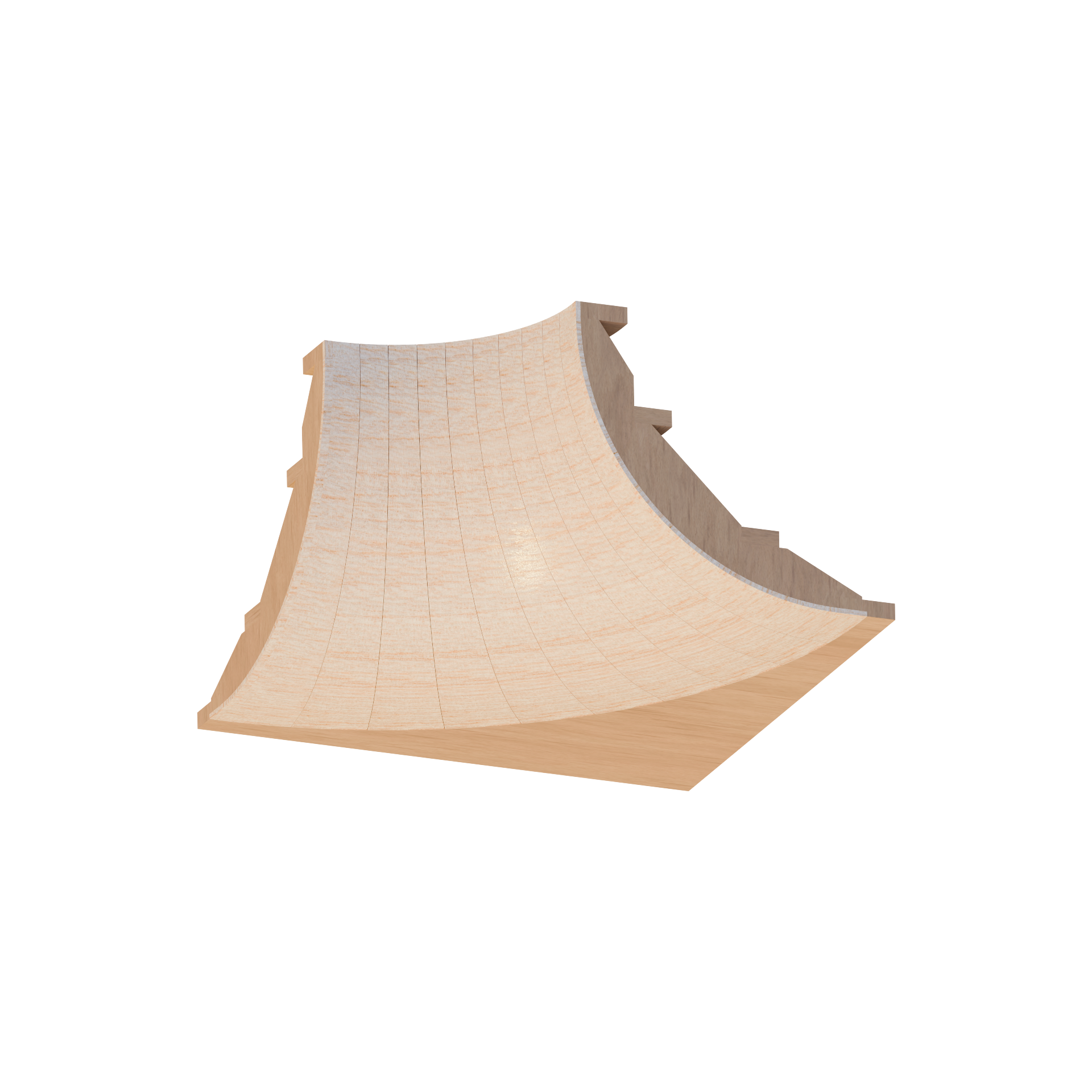

B27-R180(R=265 W=523.5 H=292)

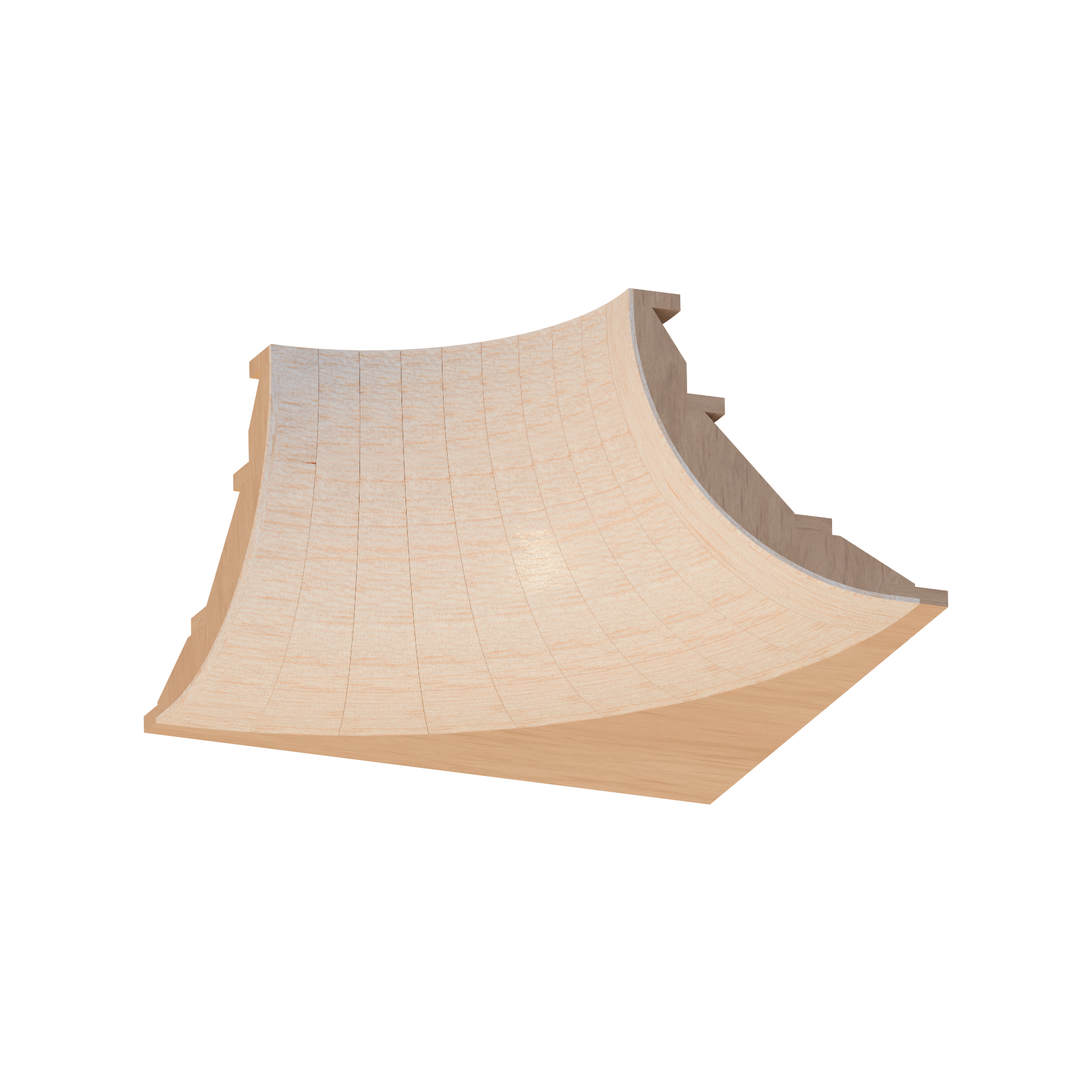

B27-R260(R=265 W=603.5 H=292)

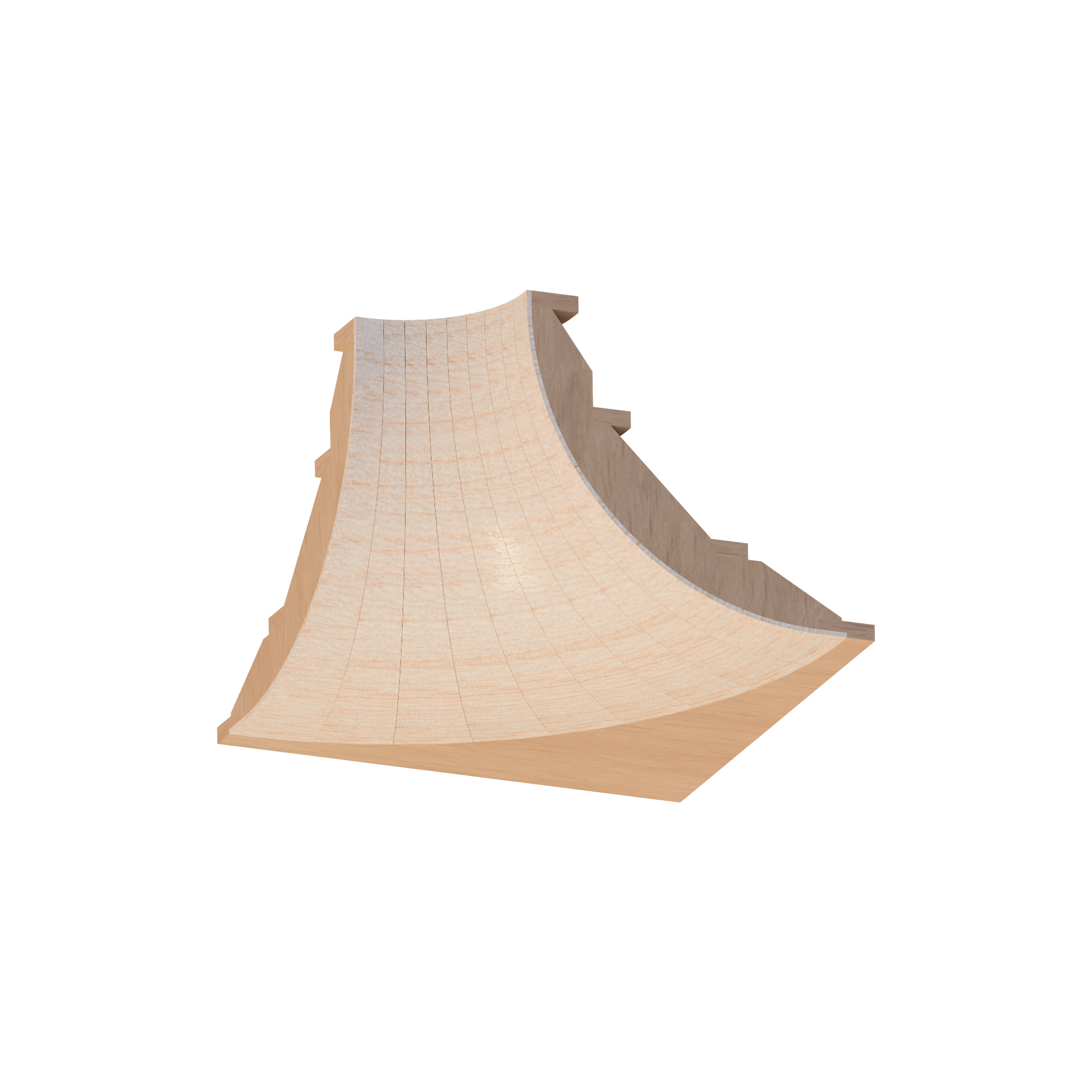

B30-R120(R=295 W=493.5 H=322)

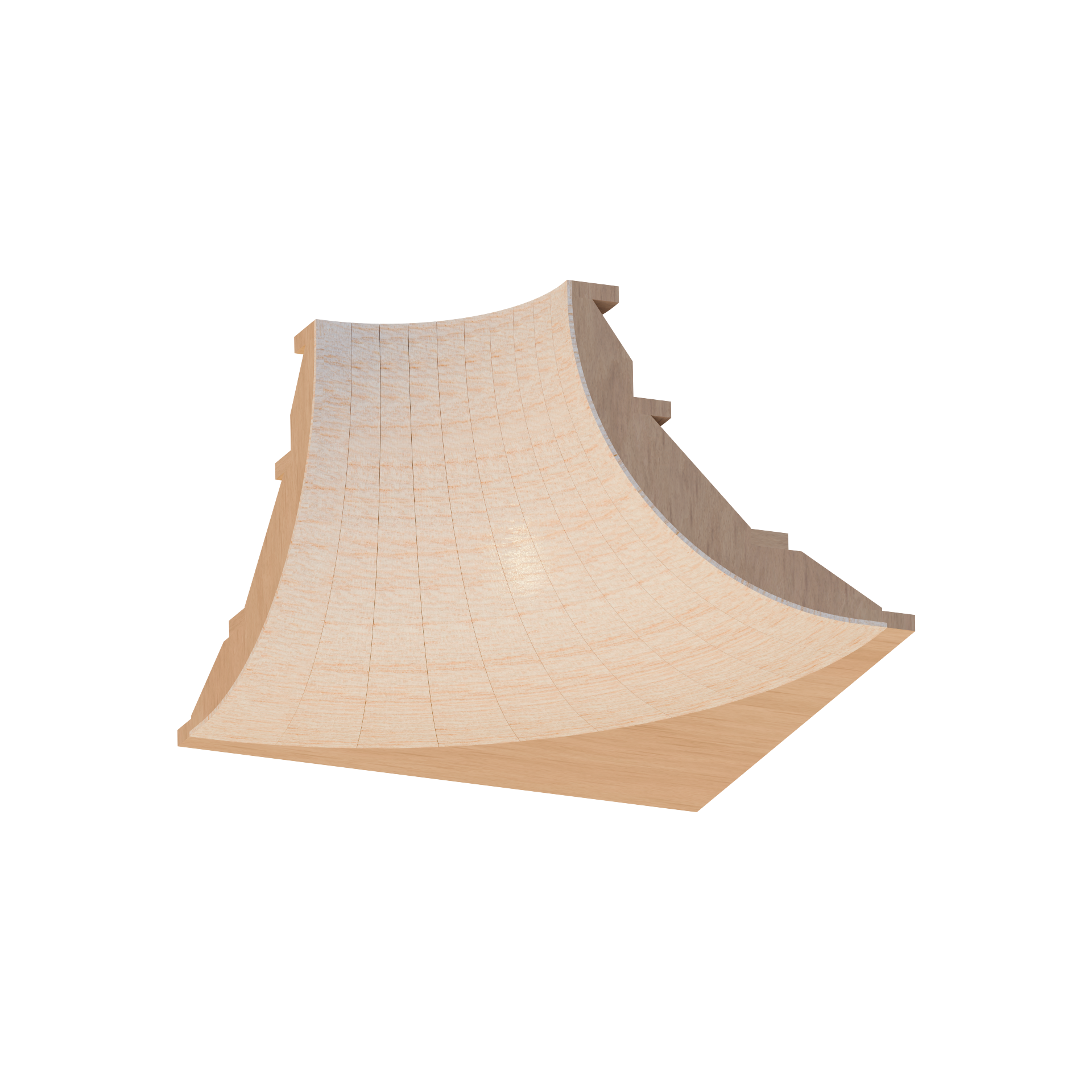

B30-R180(R=295 W=553.5 H=322)

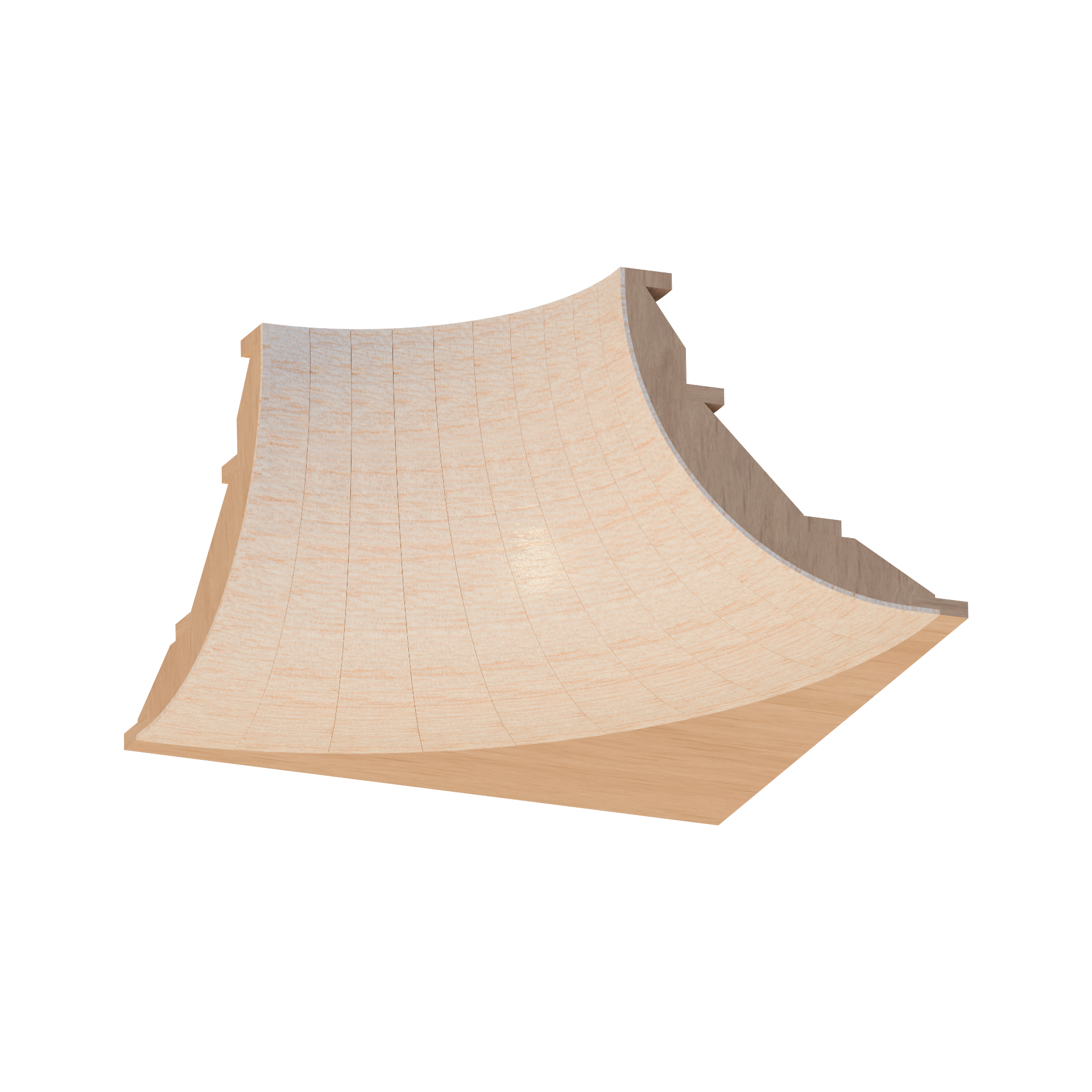

B30-R260(R=295 W=633.5 H=322)

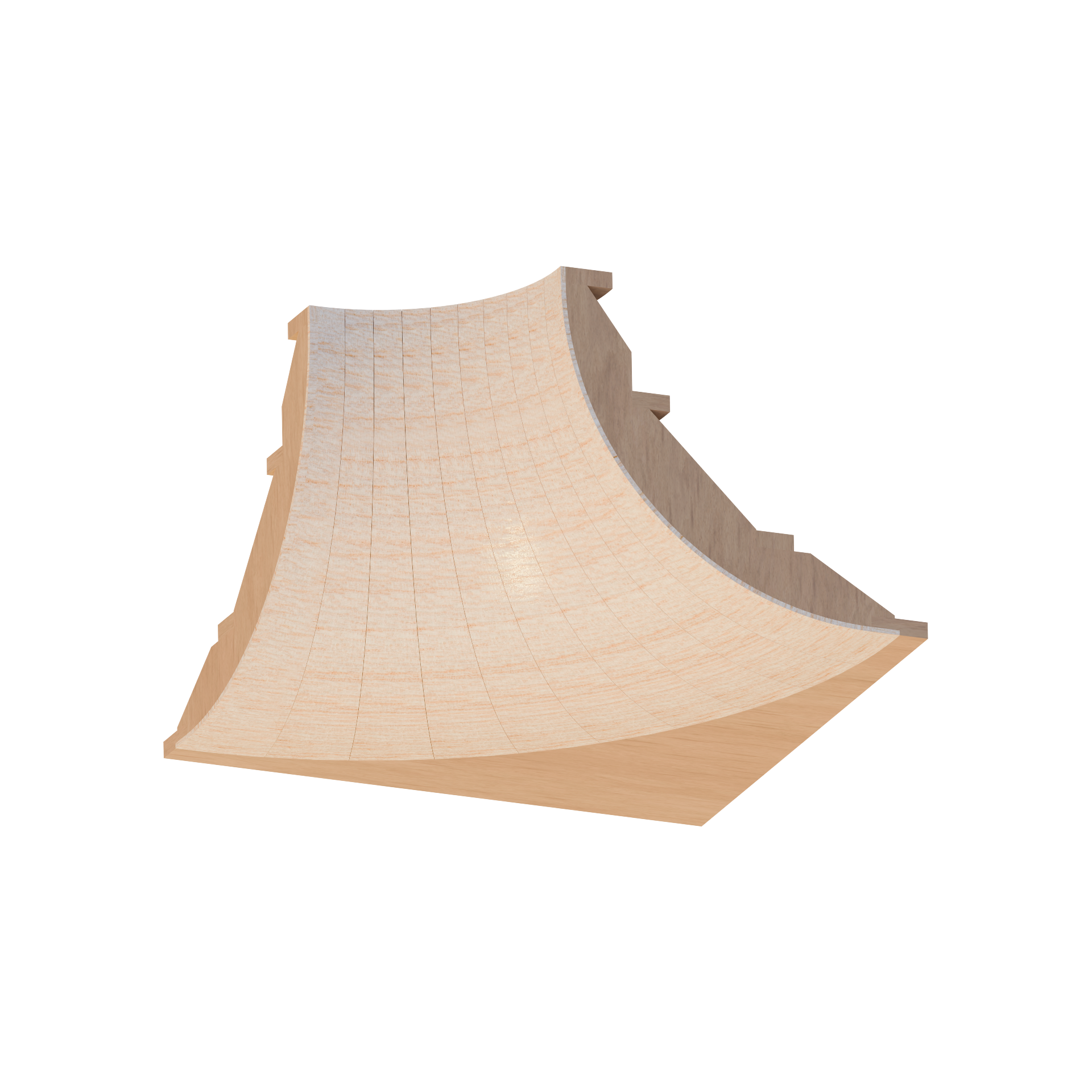

B32-R120(R=315 W=513.5 H=342)
B32-R180(R=315 W=573.5 H=342)
B32-R260(R=315 W=653.5 H=342)

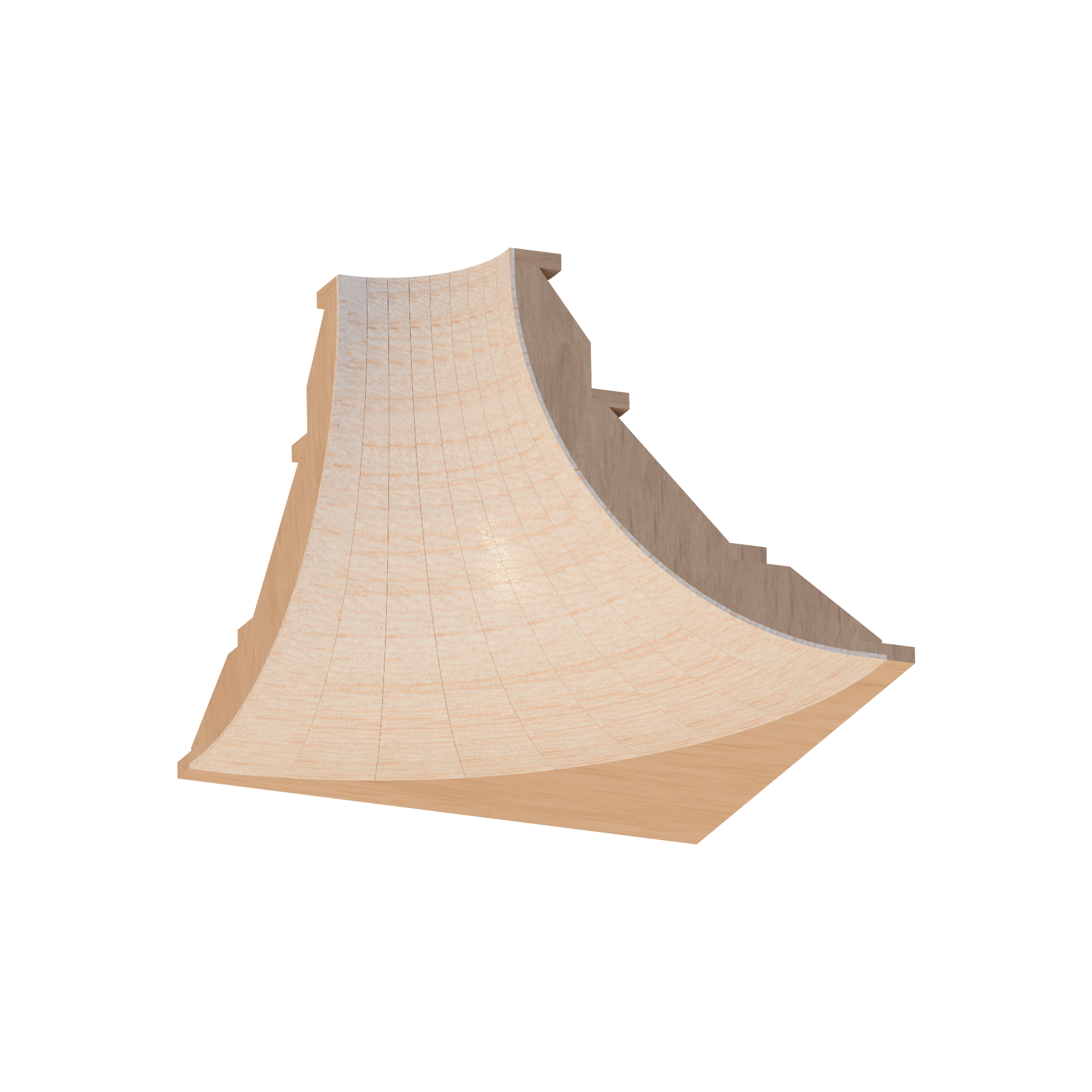

B36-R120(R=355 W=553.5 H=382)

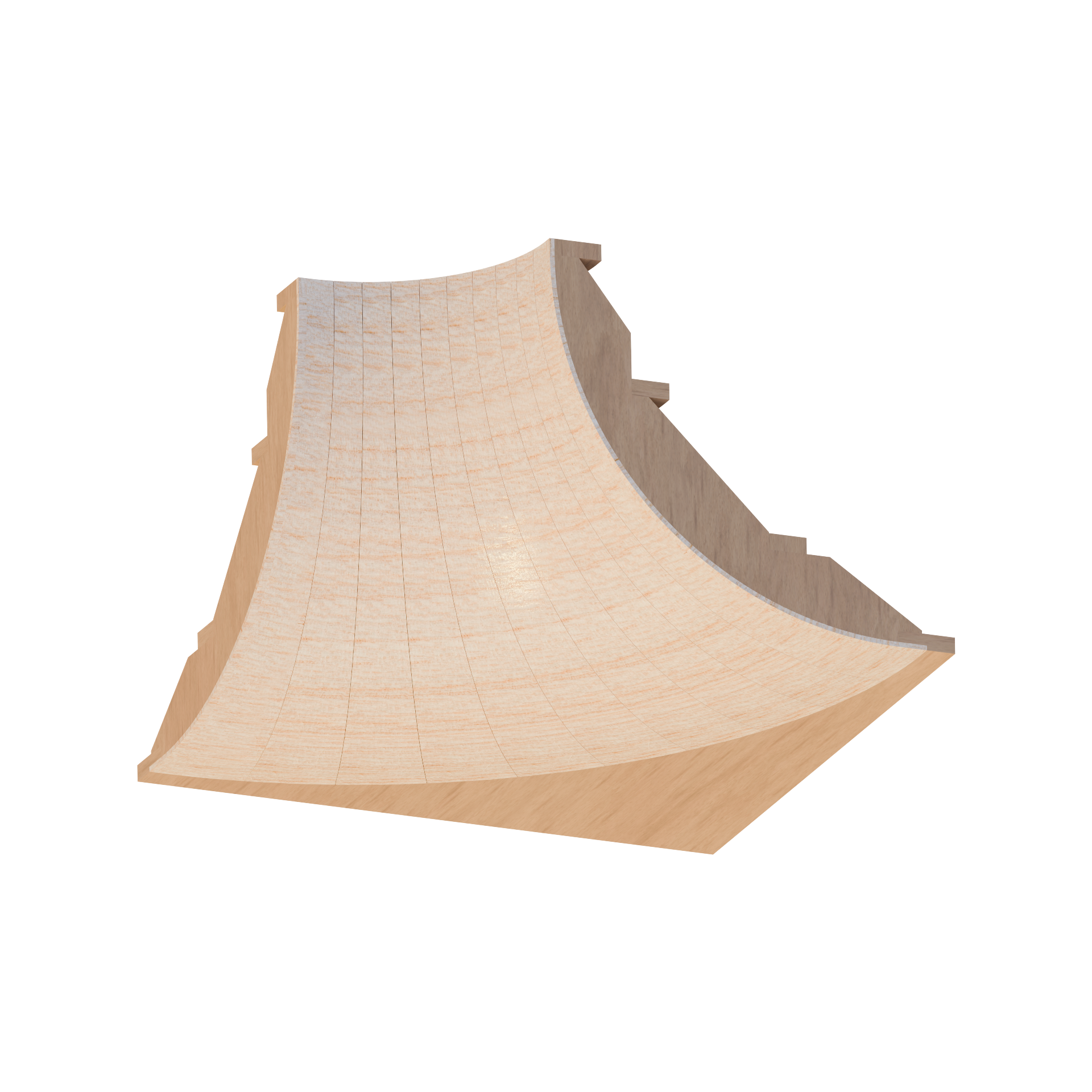

B36-R180(R=355 W=613.5 H=382)

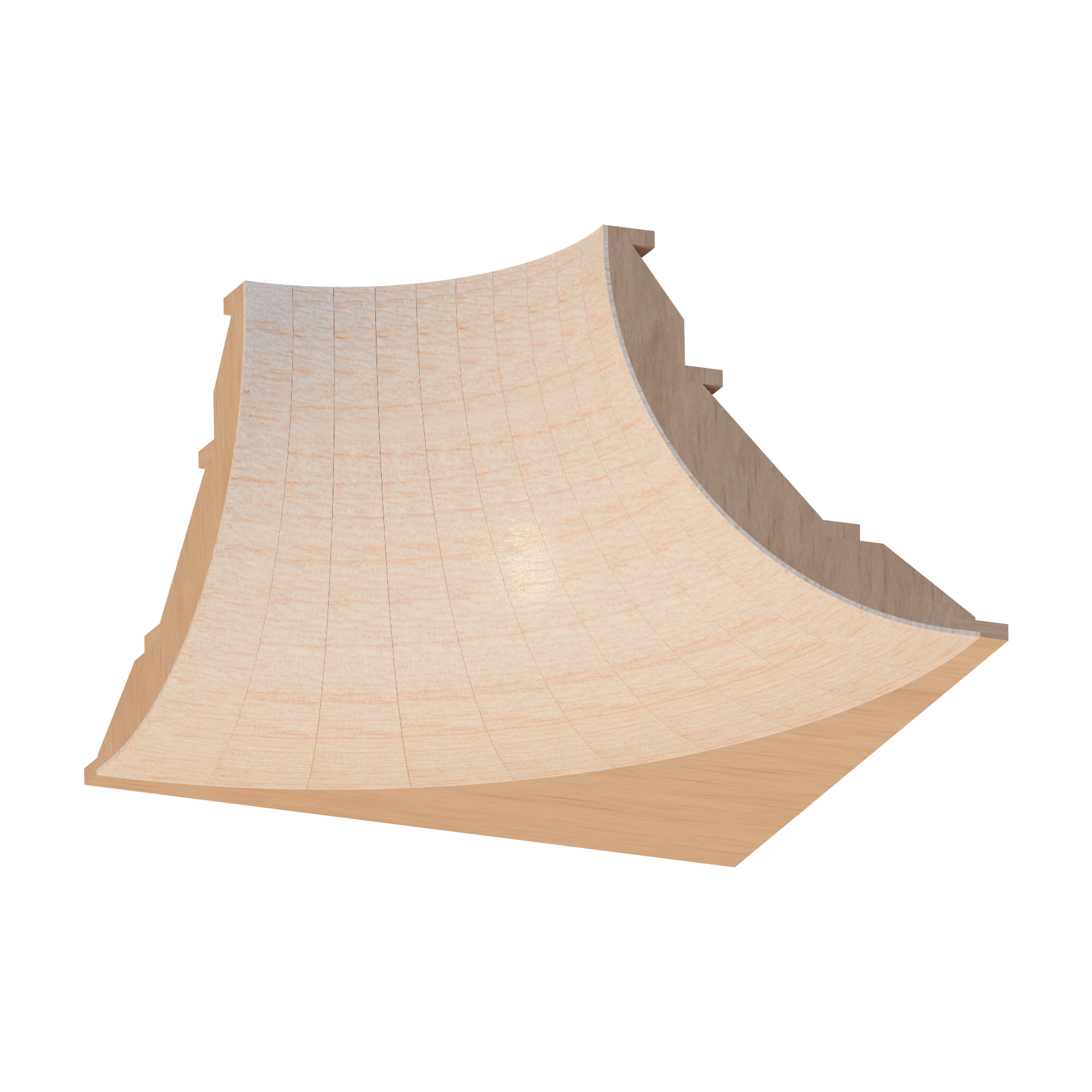

B36-R260(R=355 W=693.5 H=382)
B37.5-R120(R=370 W=568.5 H=397)

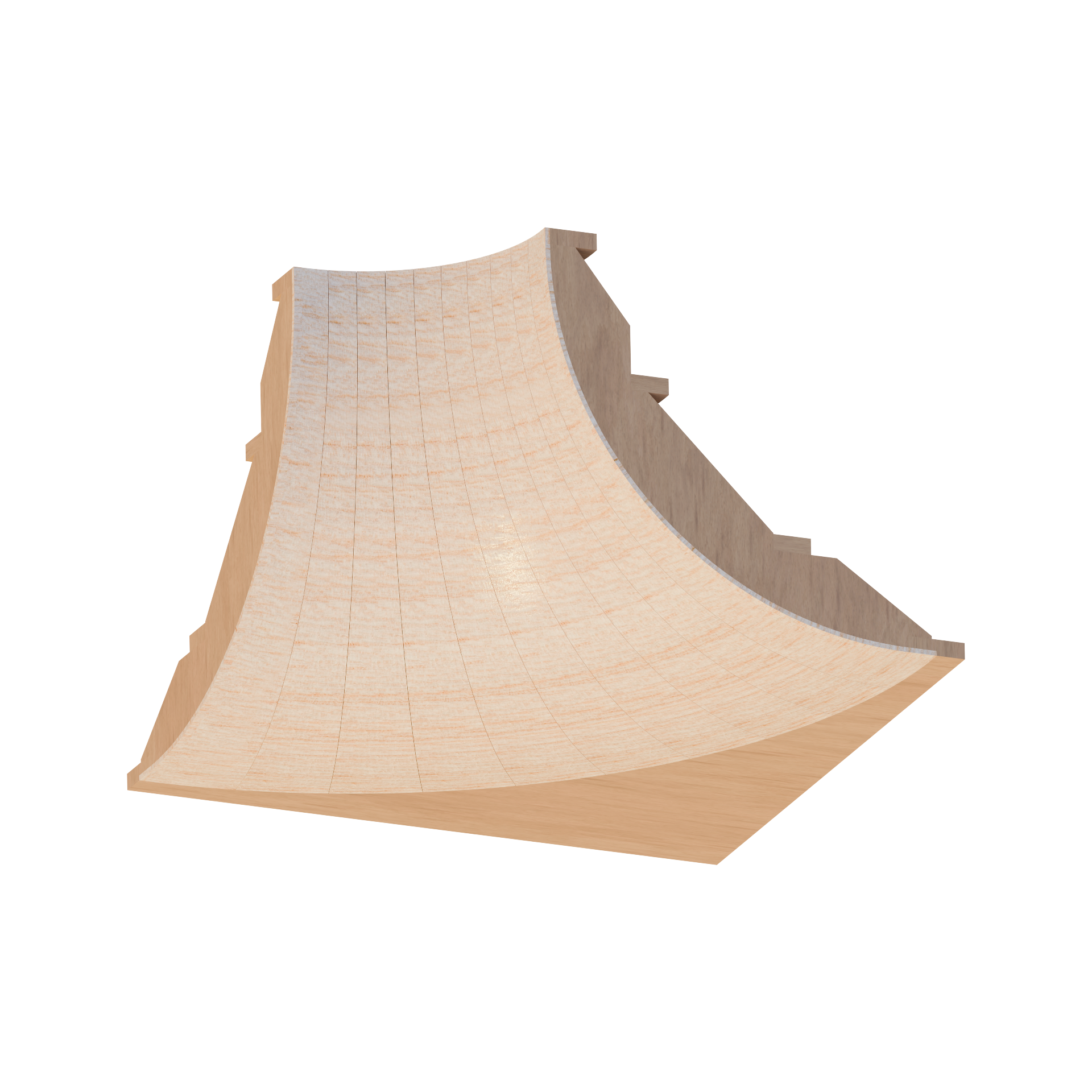

B37.5-R180(R=370 W=628.5 H=397)

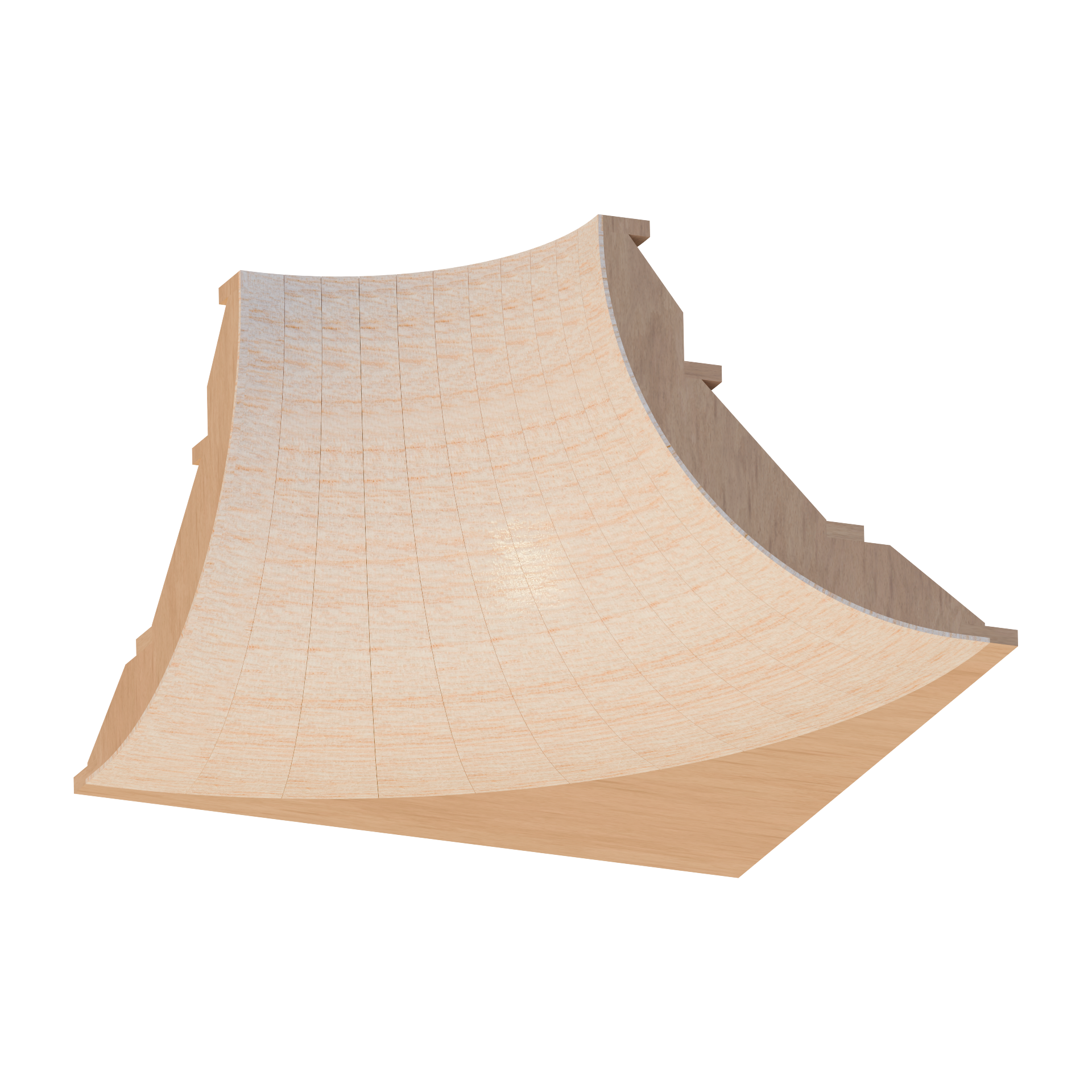

B37.5-R260(R=370 W=708.5 H=397)

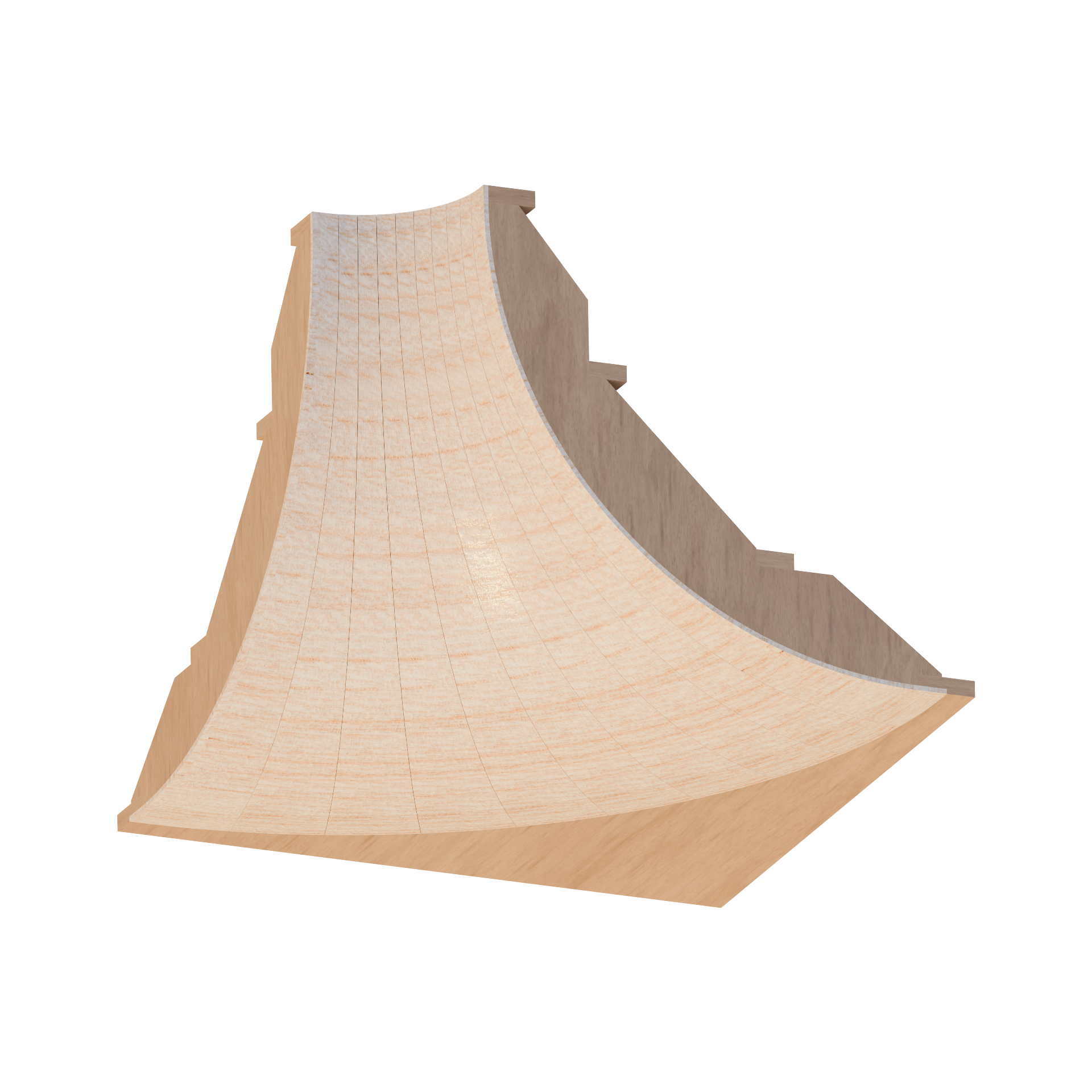

B45-R120(R=445 W=643.5 H=472)

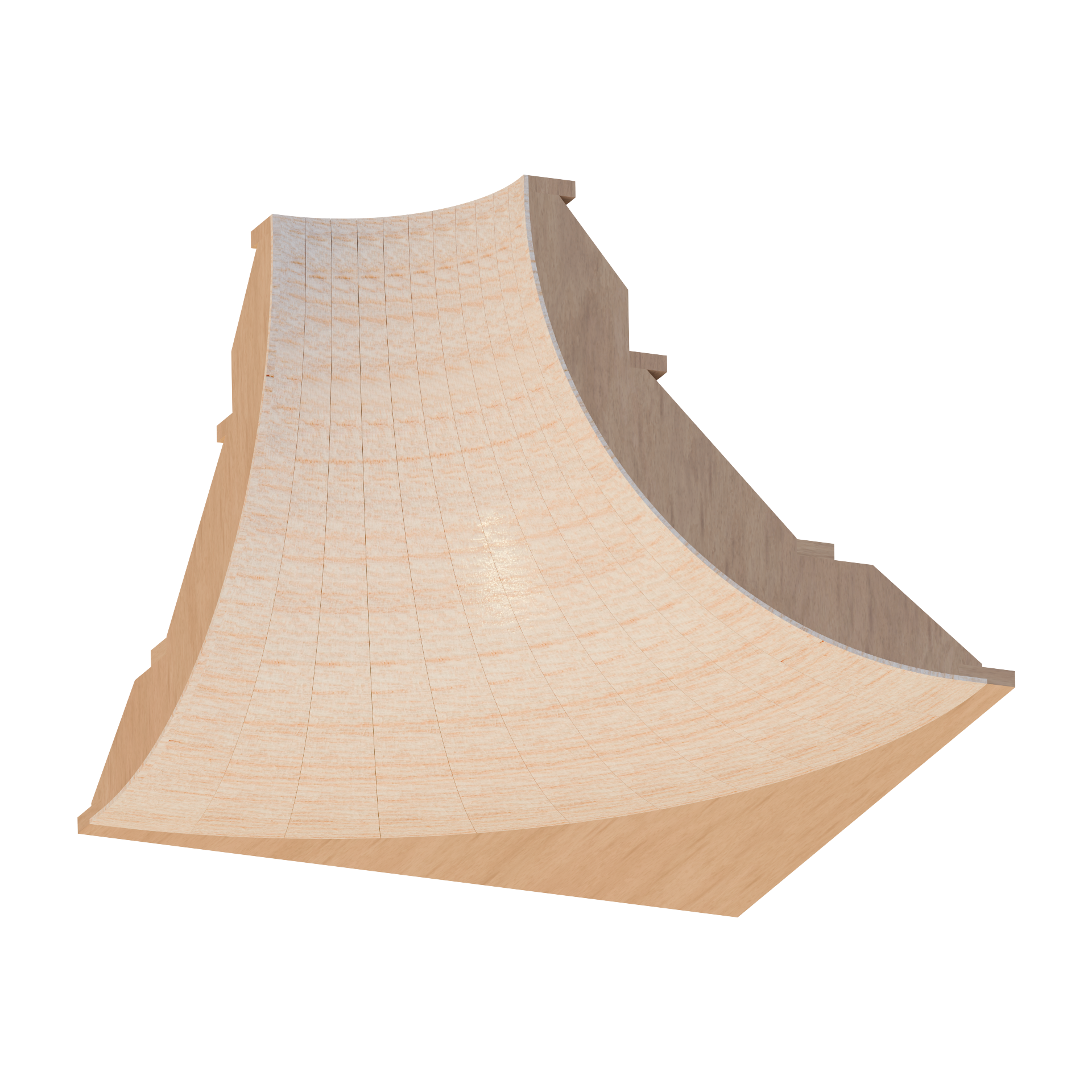

B45-R180(R=445 W=703.5 H=472)

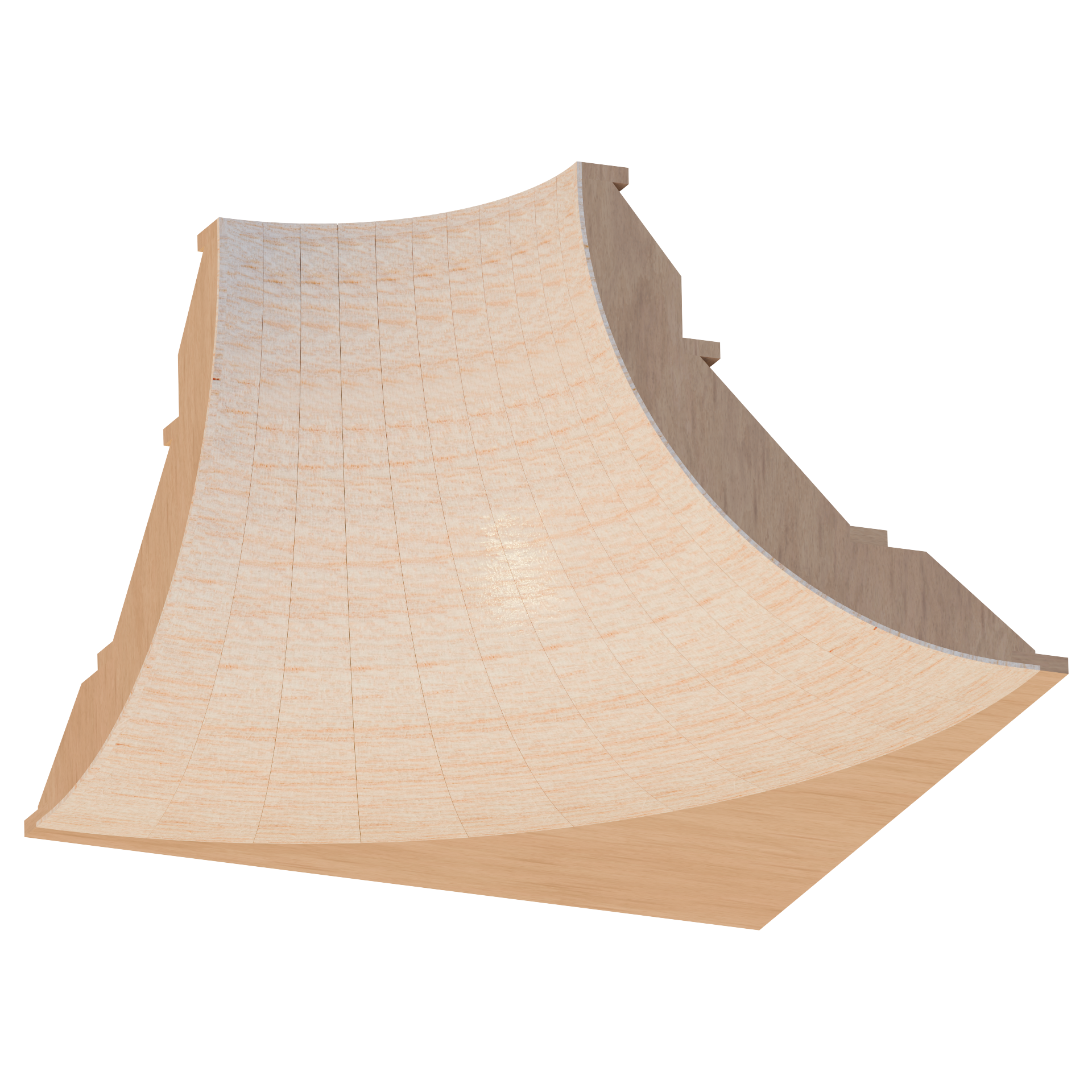

B45-R260(R=445 W=783.5 H=472)

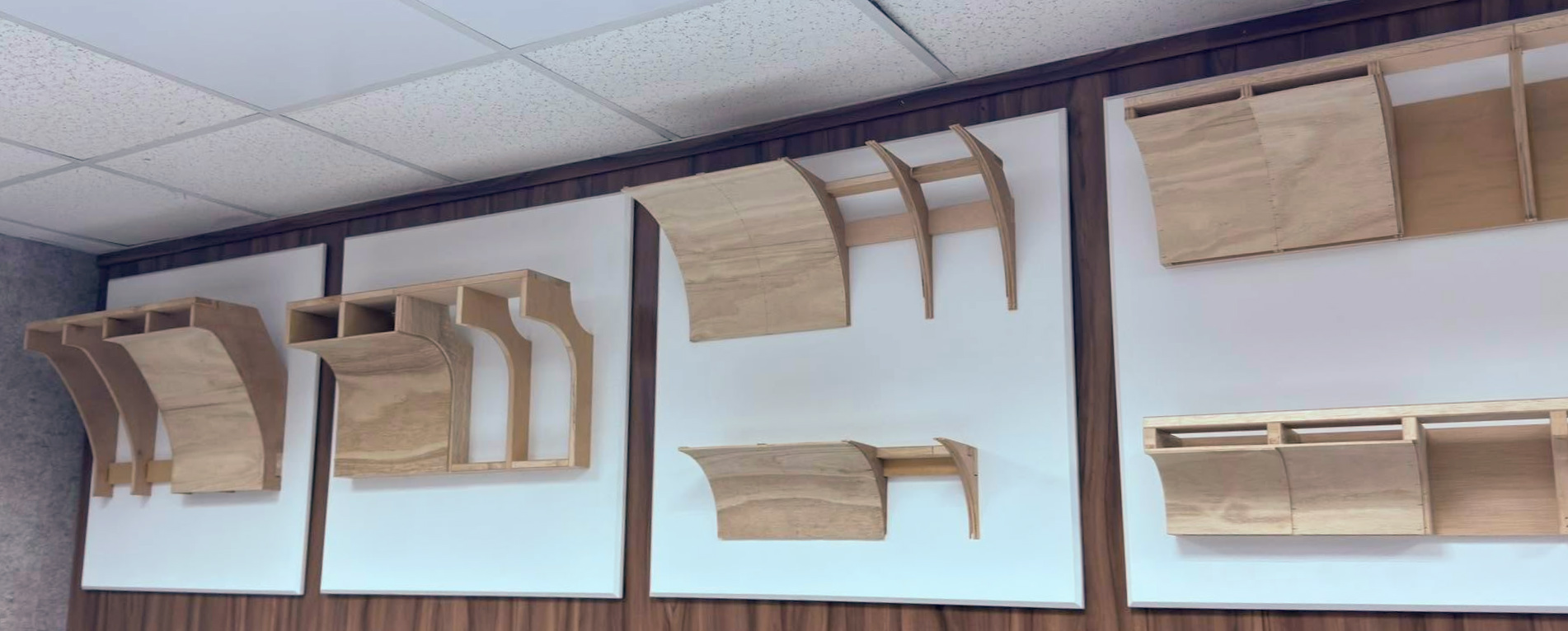

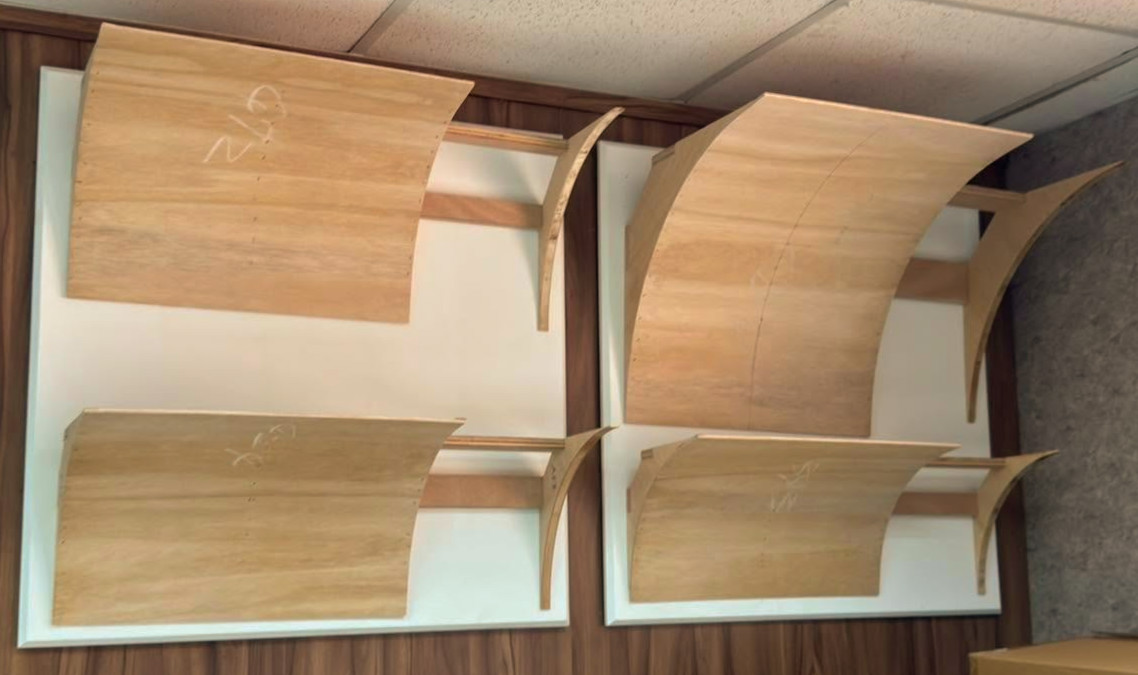

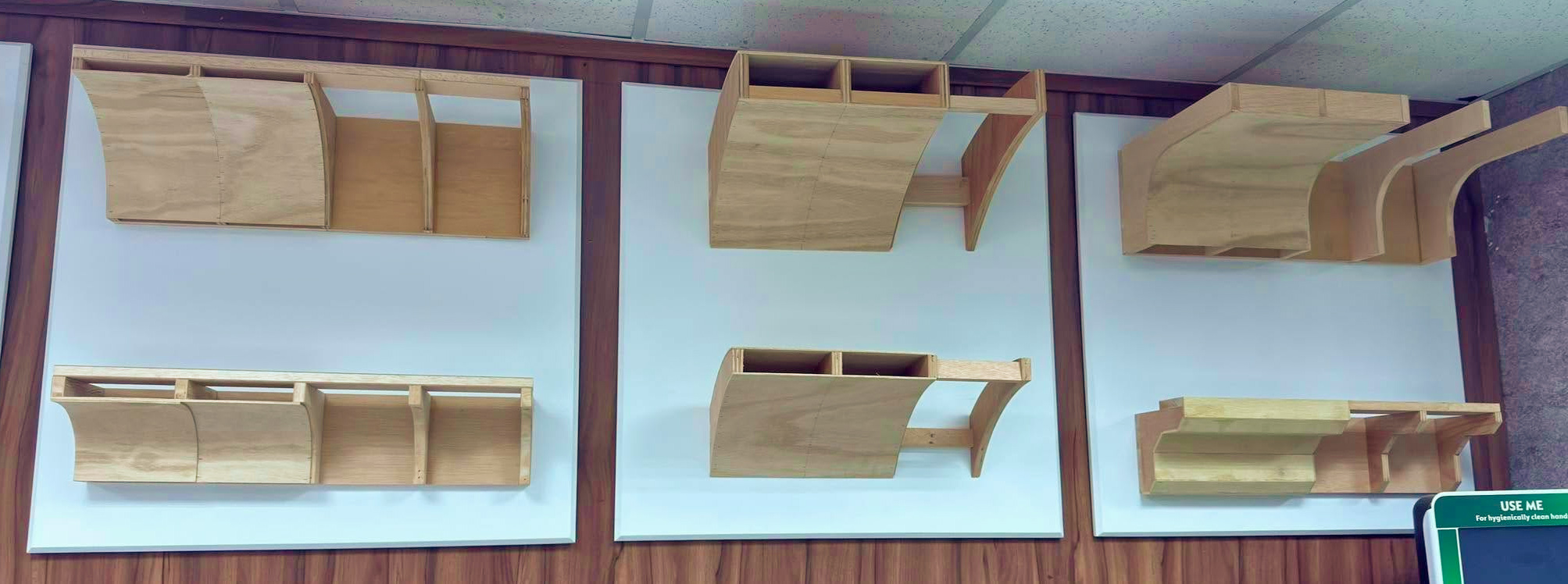

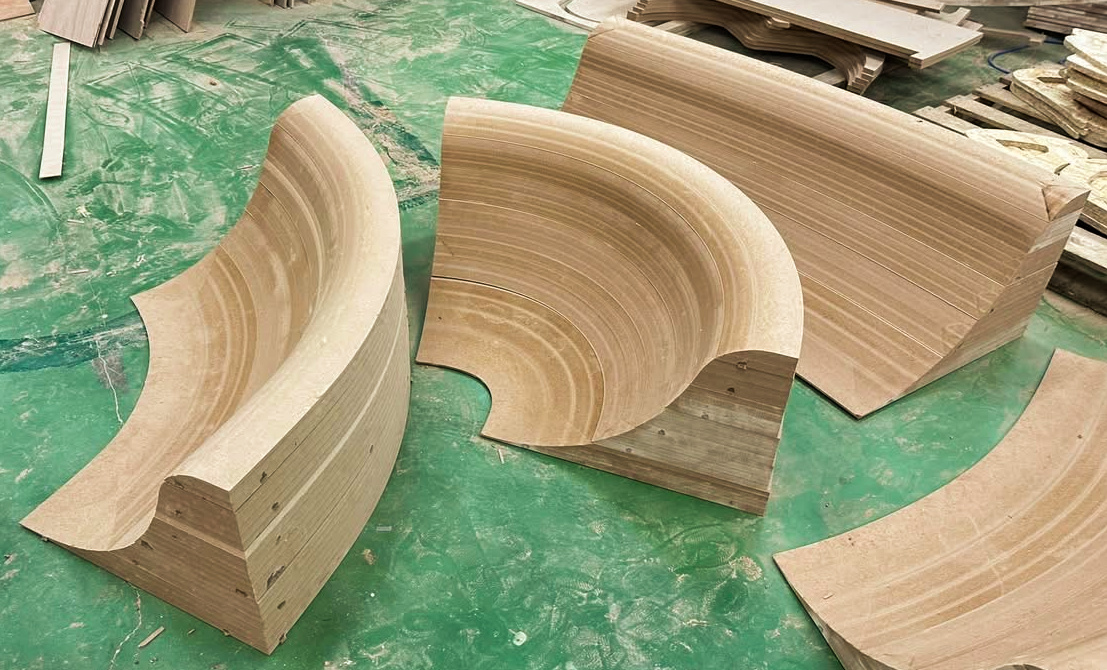

🗺 造型天花板 ~ 弧形骨架 🗺

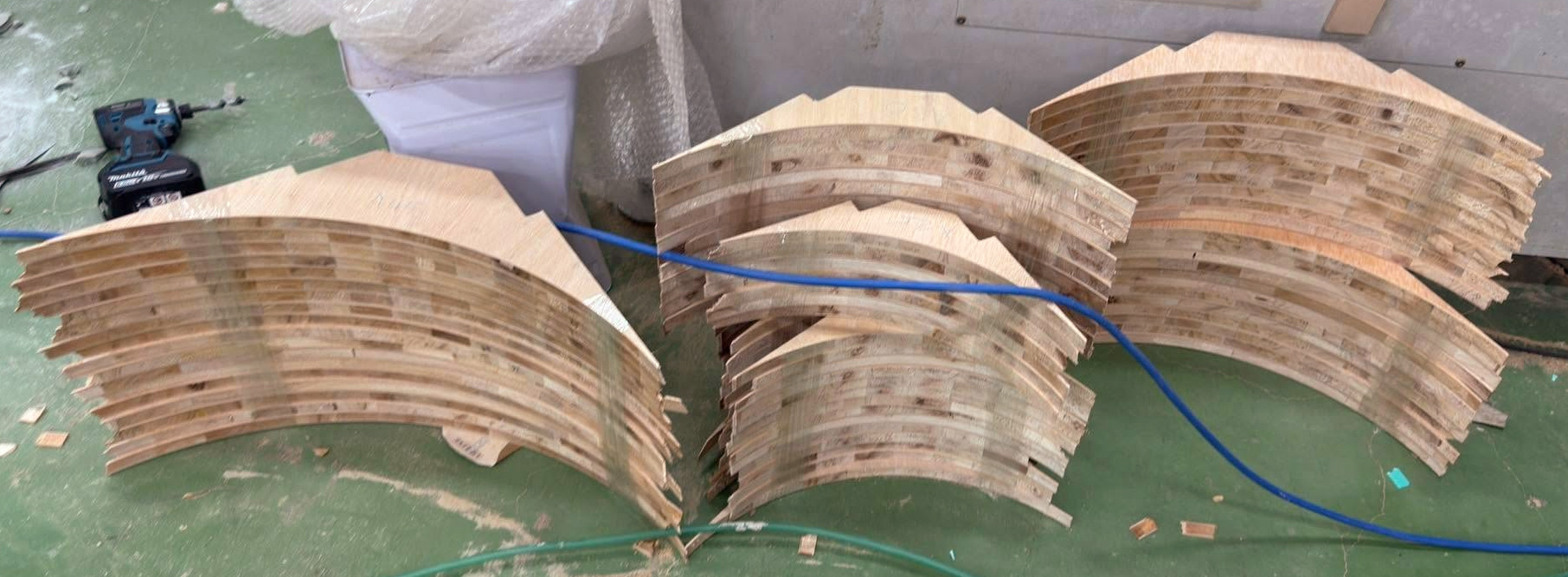

多種R角型板骨架：25R角骨架就是 25元，30R角骨架就是30元，常備上千隻庫存 供貨迅速✈️全球寄送！

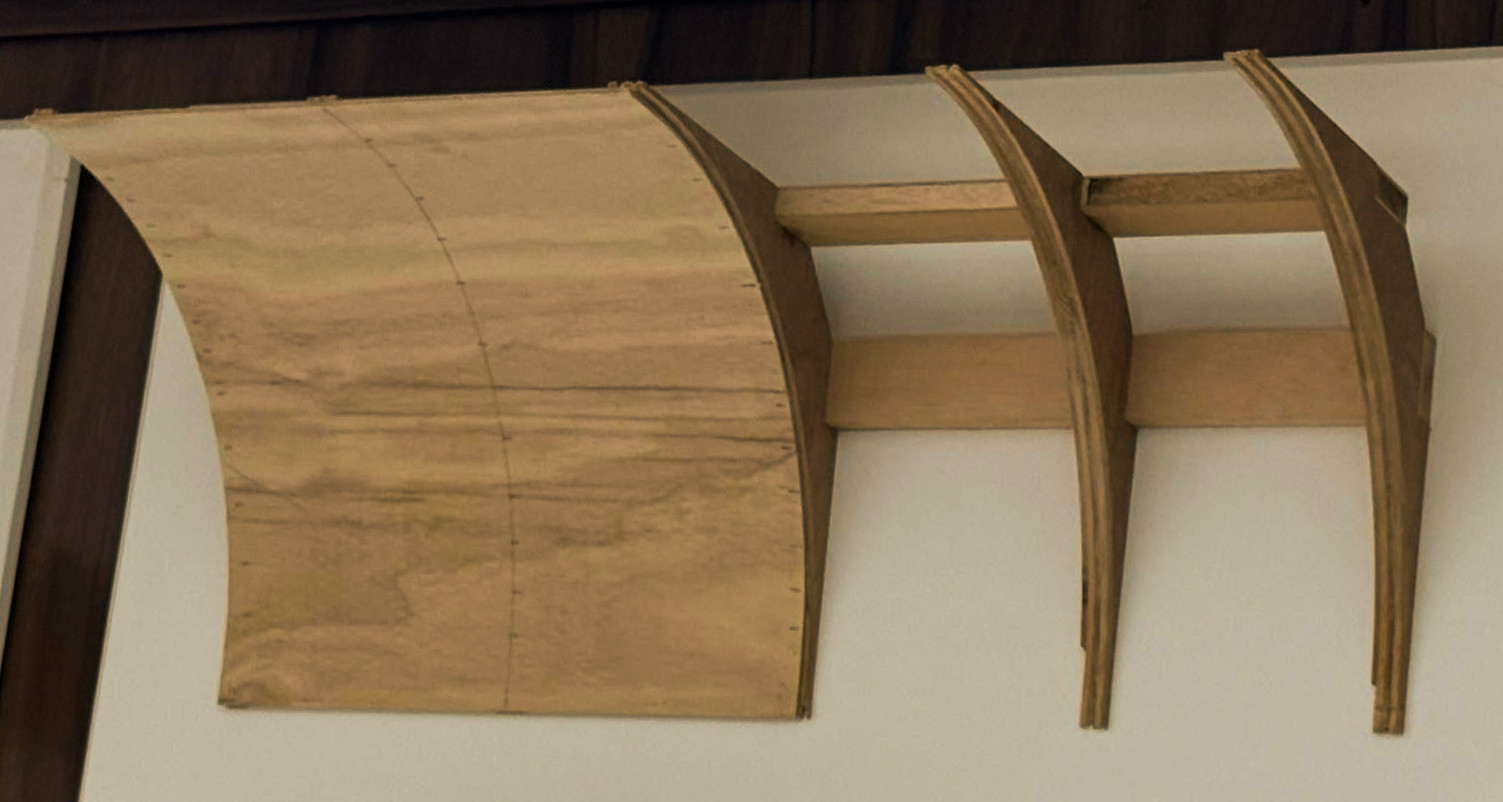

造型R角直線部份，只要8隻骨架加上可彎版就是一隻八尺線板

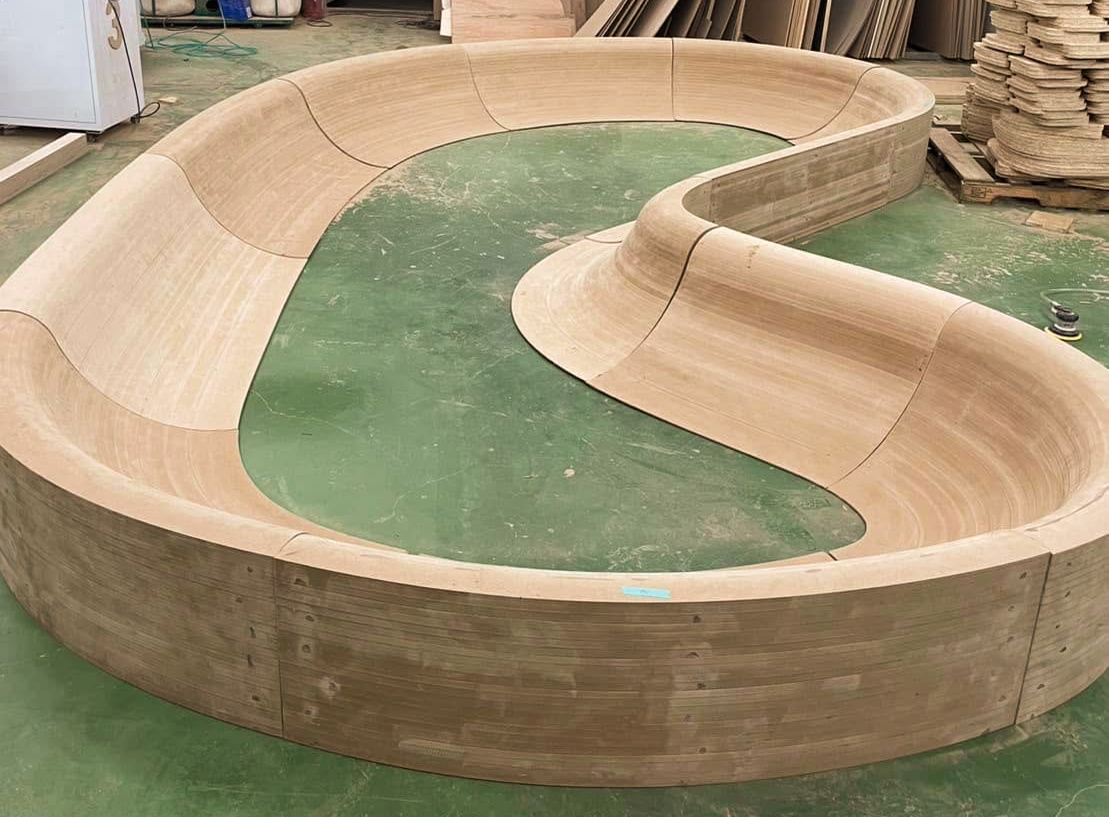

另有製圖、拆圖、切割、預組裝、運送至工地，工程師到工地提供對圖⋯⋯等服務！

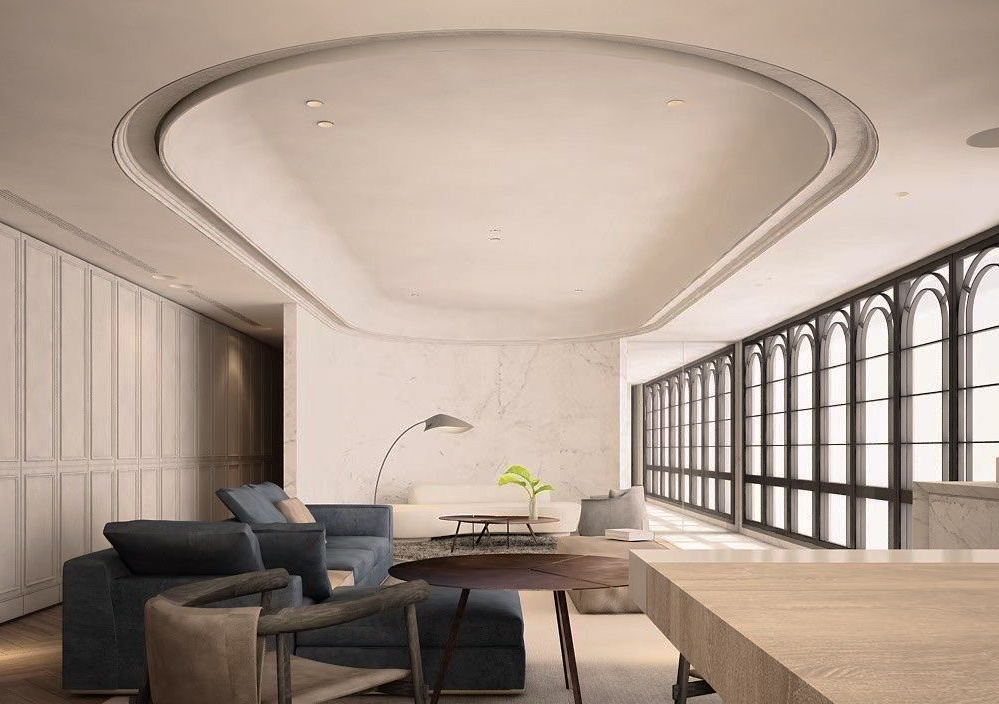

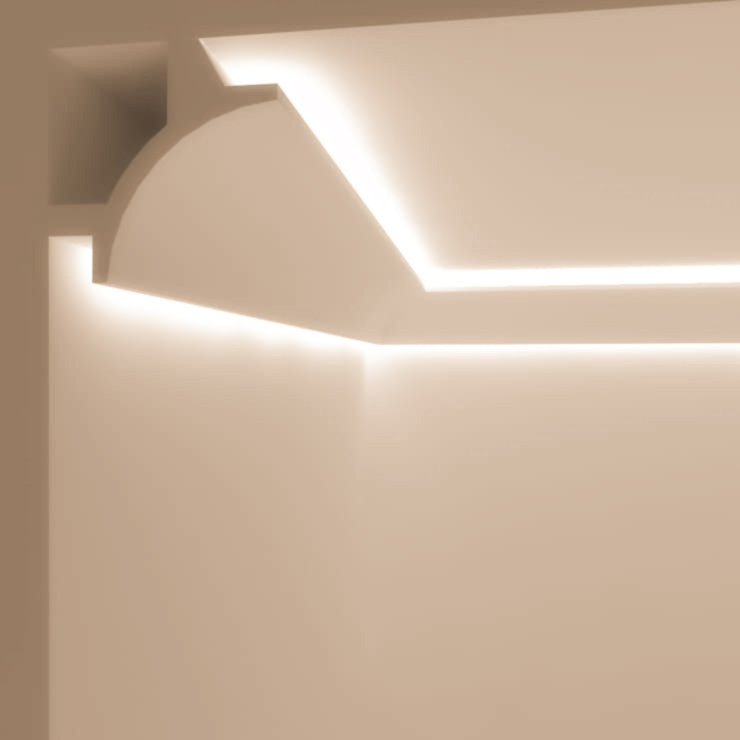

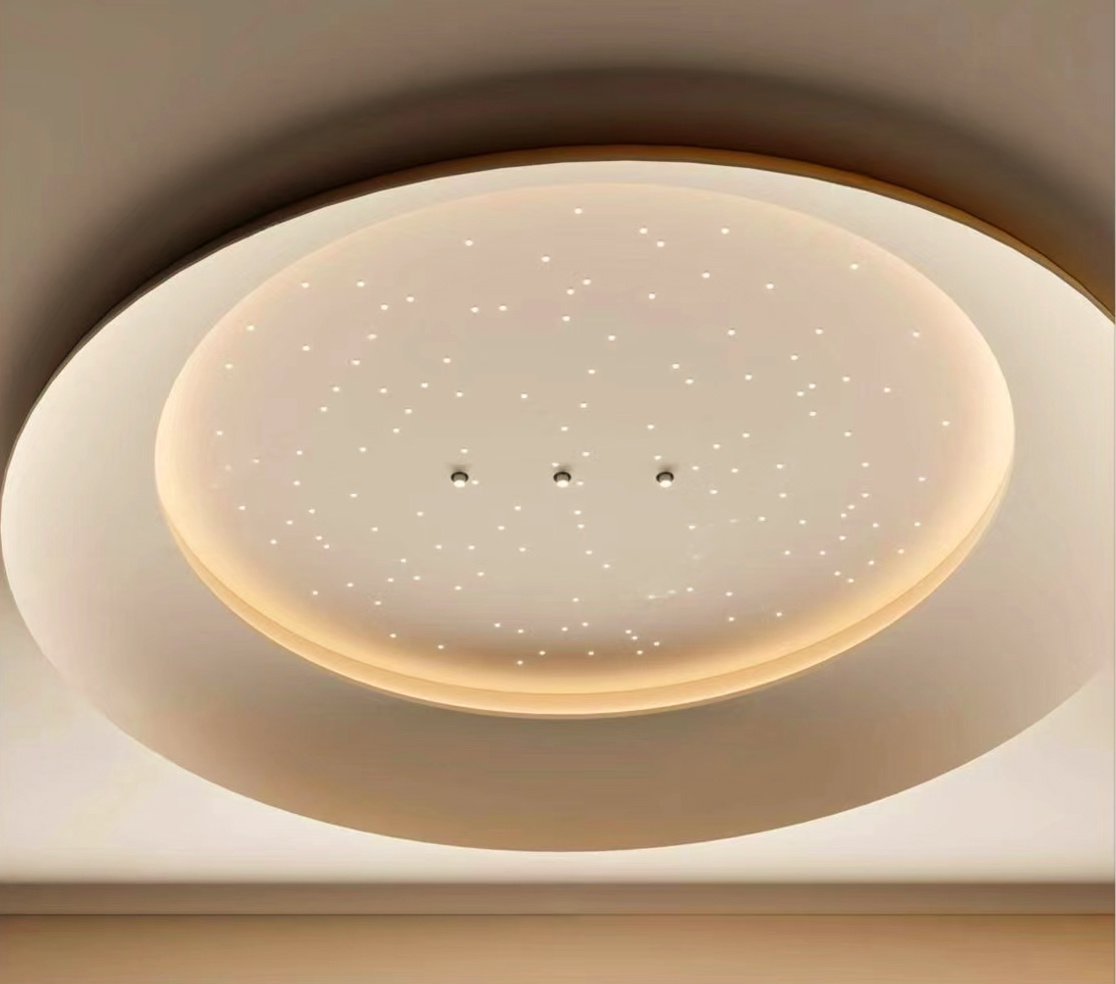

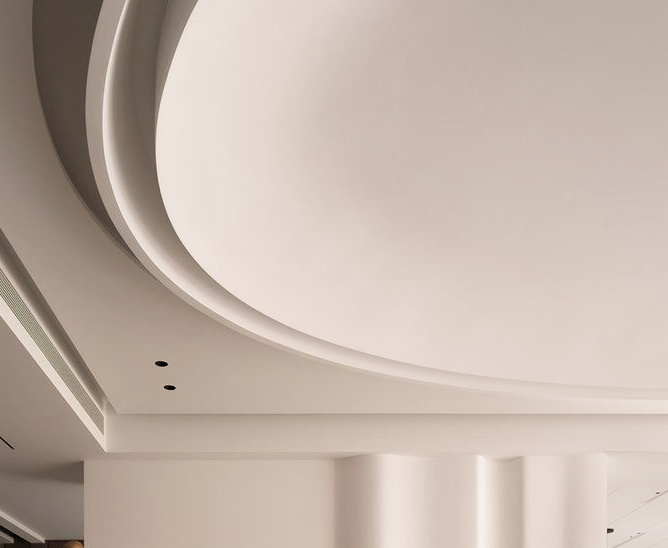

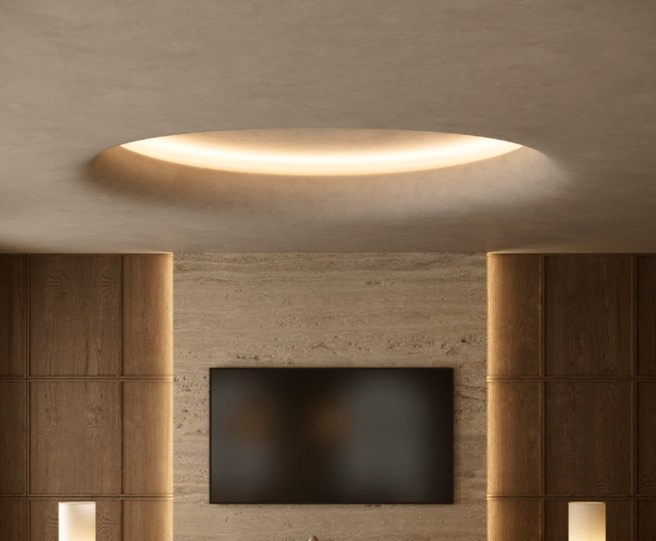

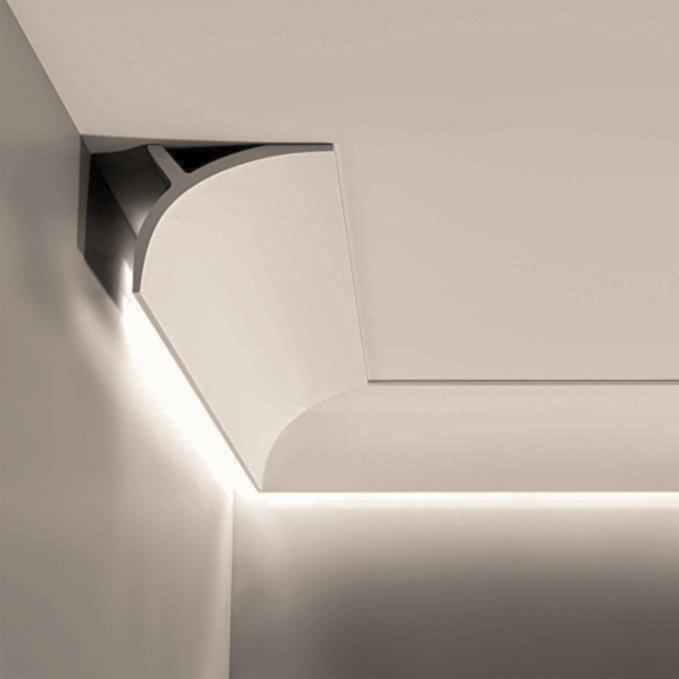

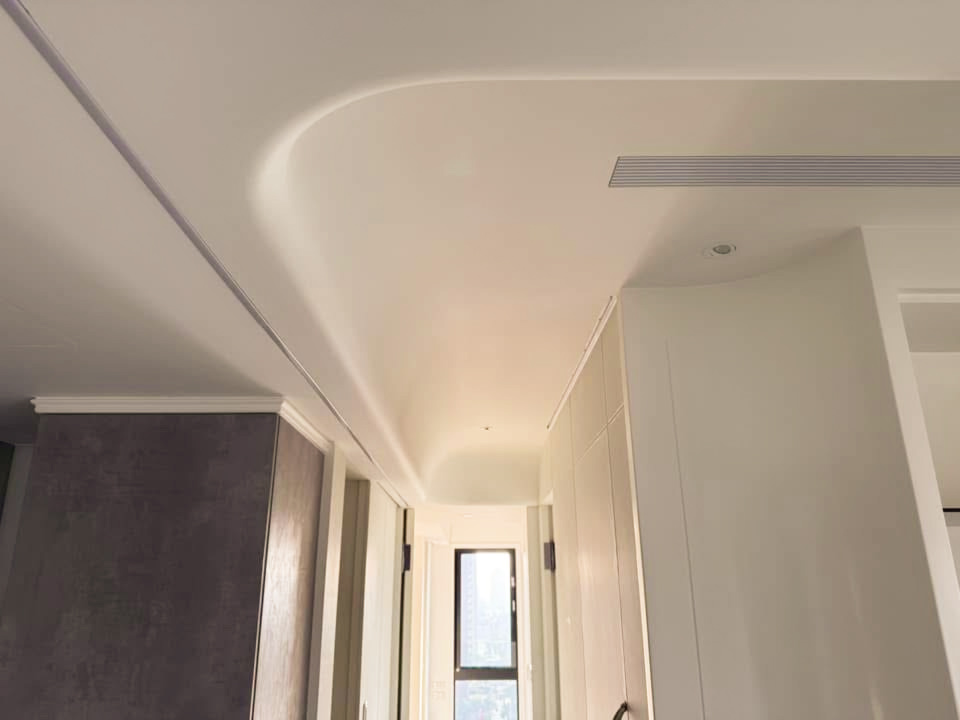

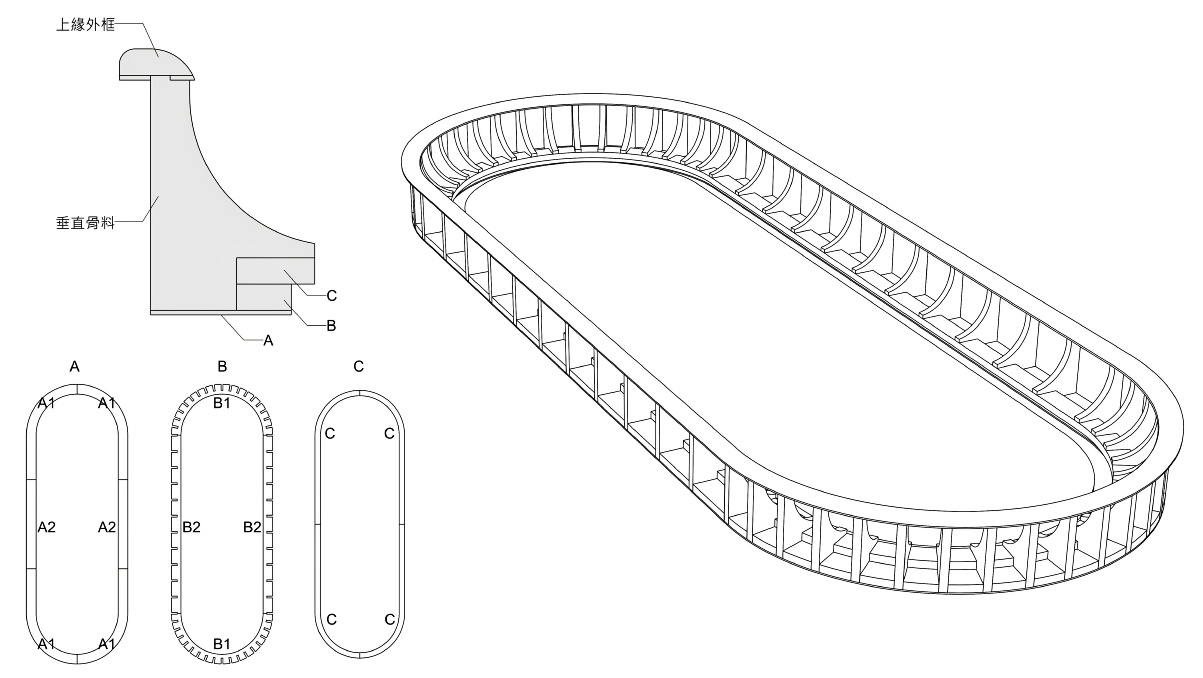

參考設計
